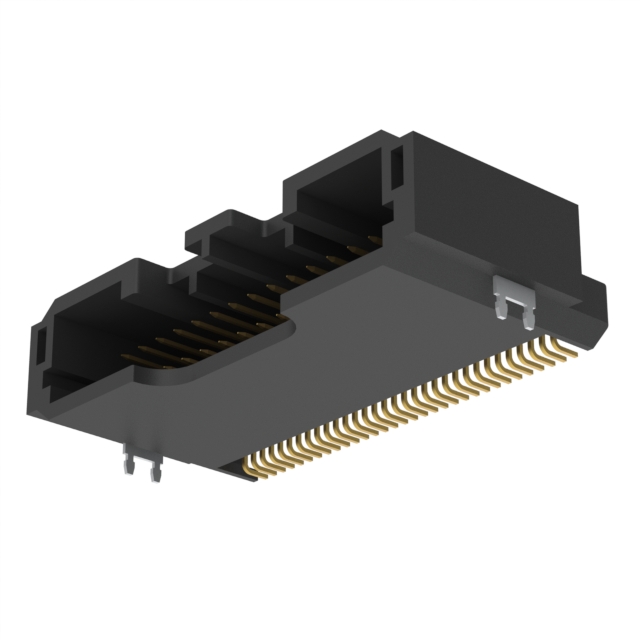

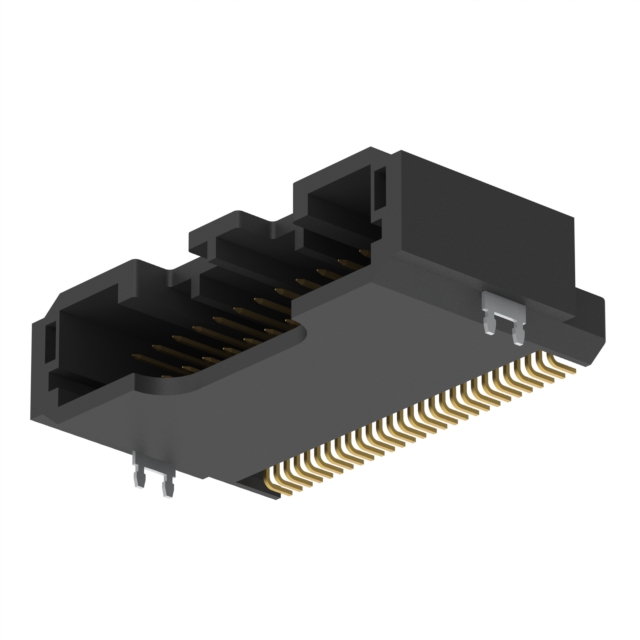

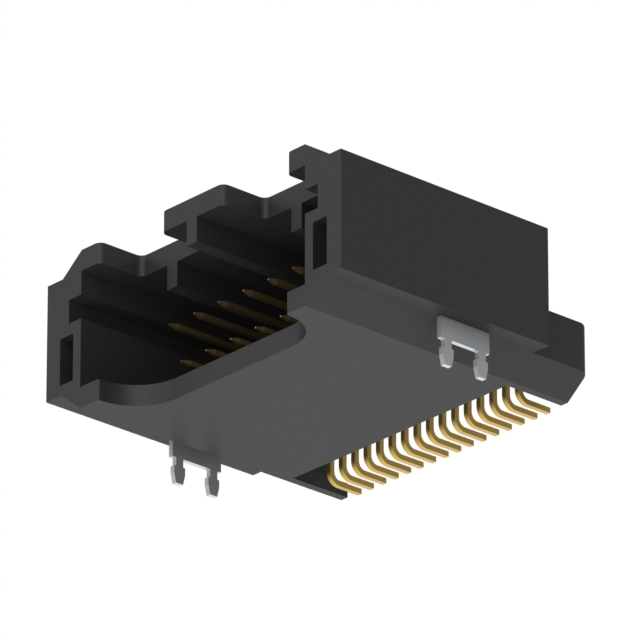

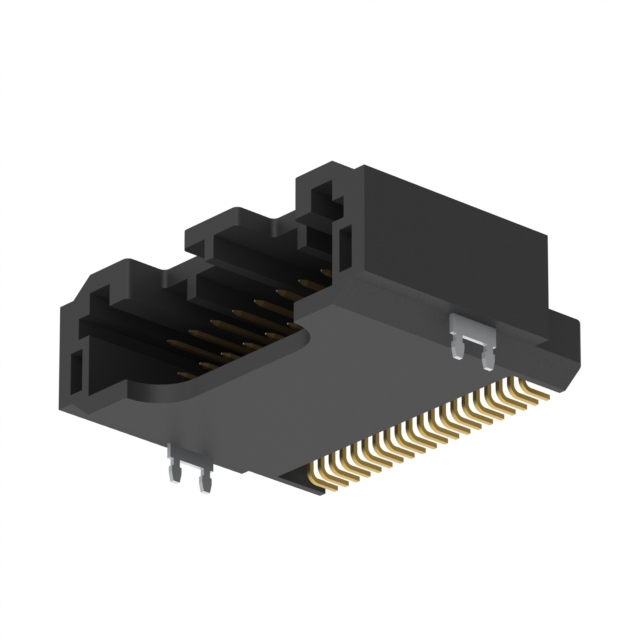

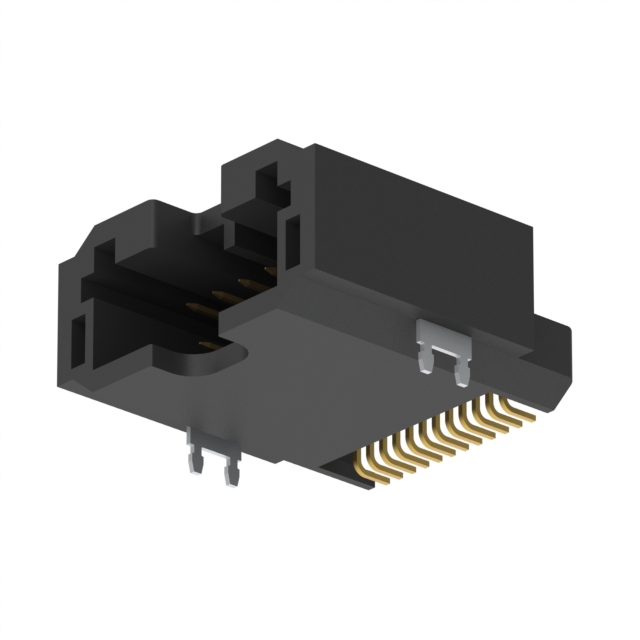

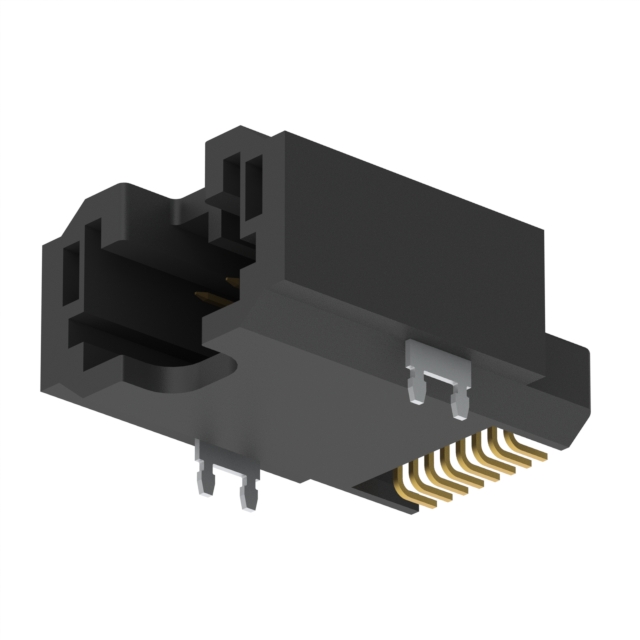

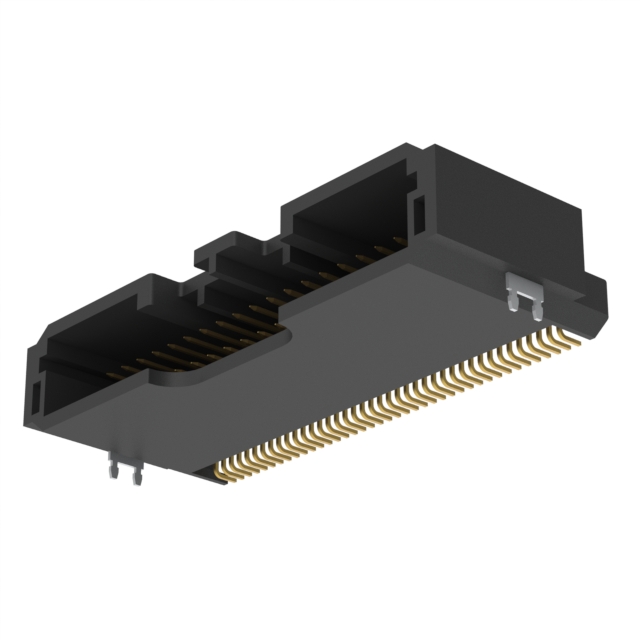

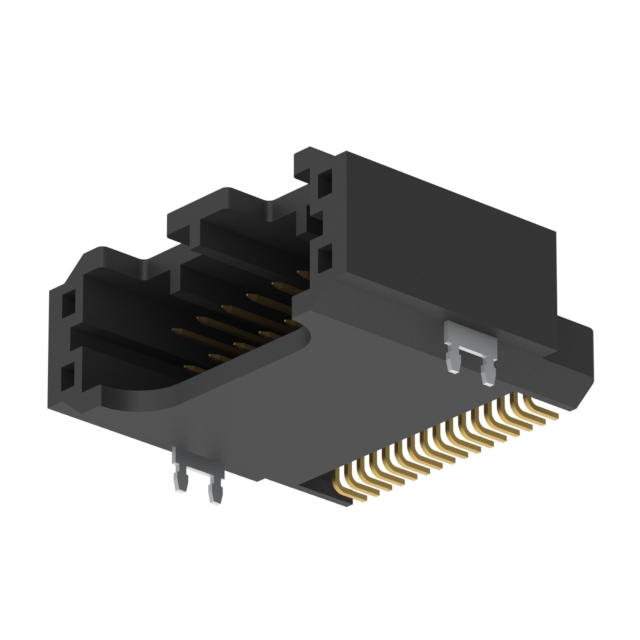

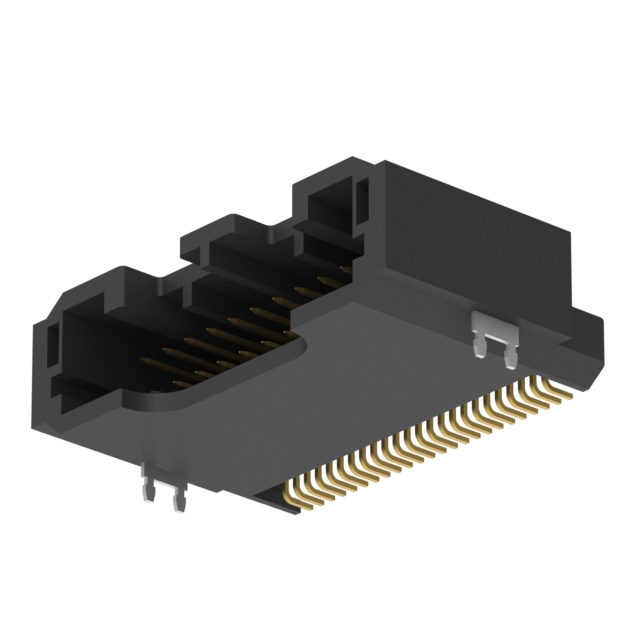

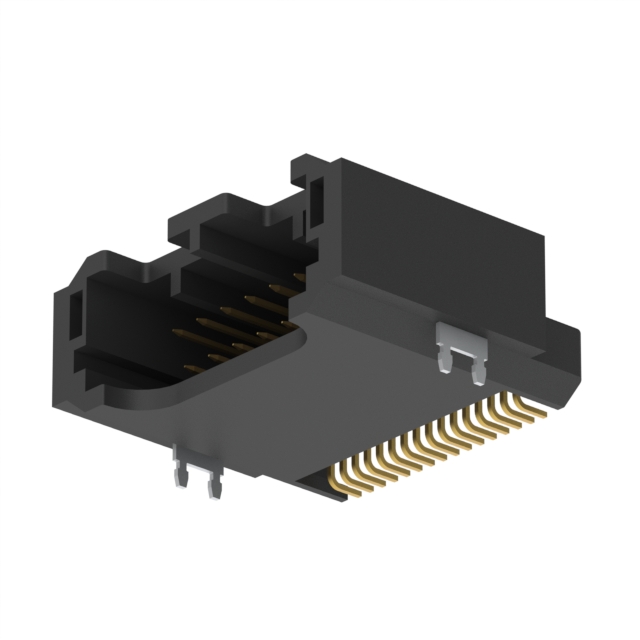

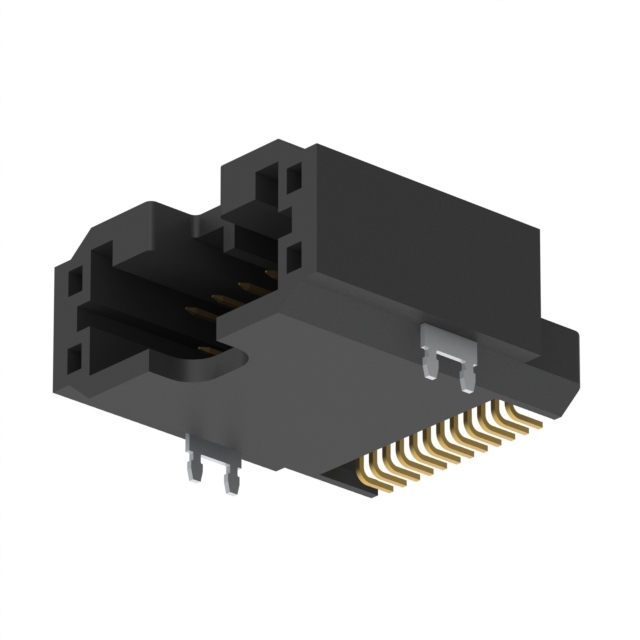

IMSA-13065B Series
Manufacturer: IRISO USA Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
HEADER SMT RA 12POS KEY-A
| Part | Insulation Height | Features | Row Spacing - Mating | Contact Shape | Contact Finish - Mating | Mounting Type | Connector Type | Number of Positions | Termination | Insulation Material | Material Flammability Rating | Fastening Type | Contact Finish Thickness - Post | Pitch - Mating | Number of Rows | Contact Finish - Post | Contact Material | Contact Type | Insulation Color | Contact Finish Thickness - Mating | Number of Positions Loaded | Shrouding | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 12 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 28 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 16 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 32 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 24 pos | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 32 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 12 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 28 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 16 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
 IRISO USA Inc. | 0.366 in | Solder Retention | 0.098 in | Square | Tin | Right Angle Surface Mount | Header | 20 | Solder | Polyphenylene Sulfide (PPS) | UL94 V-0 | Locking Ramp | 39.4 µin | 0.079 in | 2 | Tin | Copper Alloy | Male Pin | Black | 39.4 µin | All | Shrouded - 4 Wall | Board Board or Cable |
