845-136 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 136POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Gender	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Type	Flange Feature	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Finish	Termination	Pitch	Pitch	Contact Type	Color	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 845-136-524-508	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green

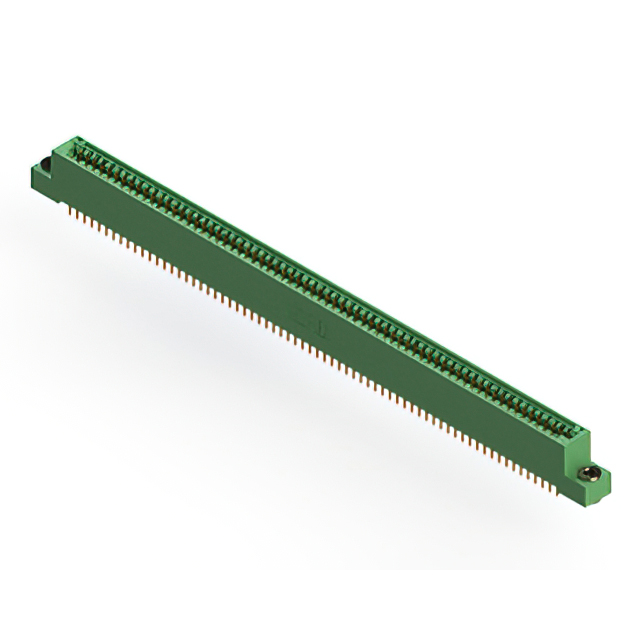

EDAC Inc. 845-136-521-203	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Floating Bobbin Flush Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.116 "	2.95 mm

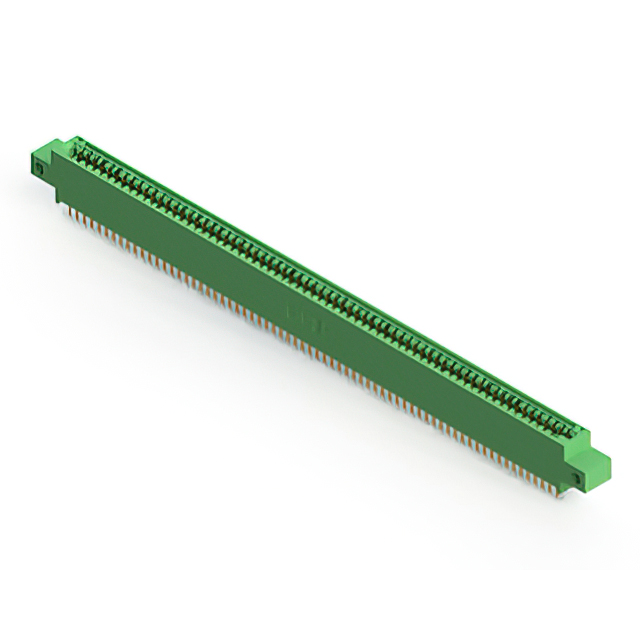

EDAC Inc. 845-136-525-812	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Side Mount Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.128 "	3.25 mm
EDAC Inc. 845-136-520-808	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green
EDAC Inc. 845-136-521-502	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge		2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.128 "	3.25 mm
EDAC Inc. 845-136-555-208	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green			Card Extender
EDAC Inc. 845-136-540-508	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Wire Wrap	0.1 "	2.54 mm	Cantilever	Green
EDAC Inc. 845-136-520-204	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.156 "	3.96 mm
EDAC Inc. 845-136-524-204	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.156 "	3.96 mm
EDAC Inc. 845-136-556-203	Diallyl Phthalate (DAP)	2	68	Female	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Floating Bobbin Flush Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	136	125 °C	-40 C	Dual	Gold	Solder	0.1 "	2.54 mm	Cantilever	Green	0.116 "	2.95 mm	Card Extender
