WP1503 Series

Catalog

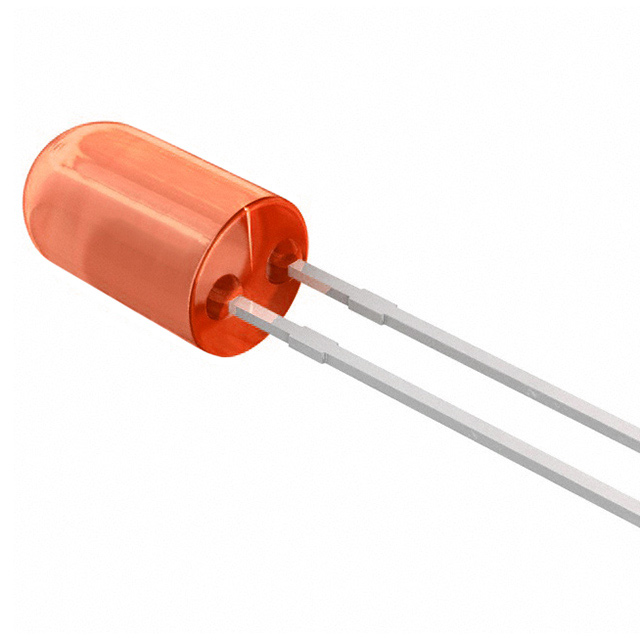

LED RED CLEAR T-1 3/4 T/H

Part	Size / Dimension [diameter]	Wavelength - Peak	Mounting Type	Supplier Device Package	Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size	Lens Size	Millicandela Rating	Configuration	Current - Test	Height (Max) [Max] [z]	Lens Style	Package / Case	Lens Color	Viewing Angle	Voltage Rating	Lens Type	Current
Kingbright WP1503EC	5 mm	627 nm	Through Hole	T-1 3/4	Red	Clear	2 V	617 nm	5 mm	T-1 3/4	50 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Colorless	30 °
Kingbright WP1503GD	5 mm	565 nm	Through Hole	T-1 3/4	Green	Diffused	2.2 V	568 nm	5 mm	T-1 3/4	30 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Green	60 °
Kingbright WP1503SGT	5 mm	565 nm	Through Hole	T-1 3/4	Green	Clear	2.2 V	568 nm	5 mm	T-1 3/4	200 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Green	30 °
Kingbright WP1503GC	5 mm	565 nm	Through Hole	T-1 3/4	Green	Clear	2.2 V	568 nm	5 mm	T-1 3/4	100 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Colorless	30 °

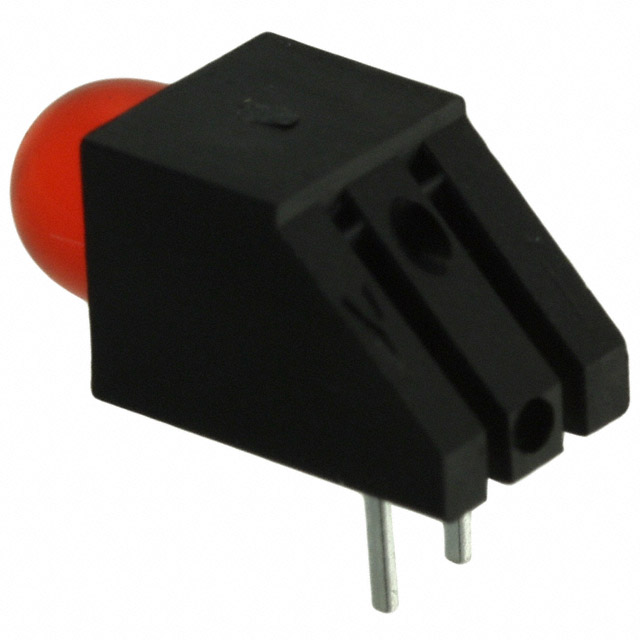

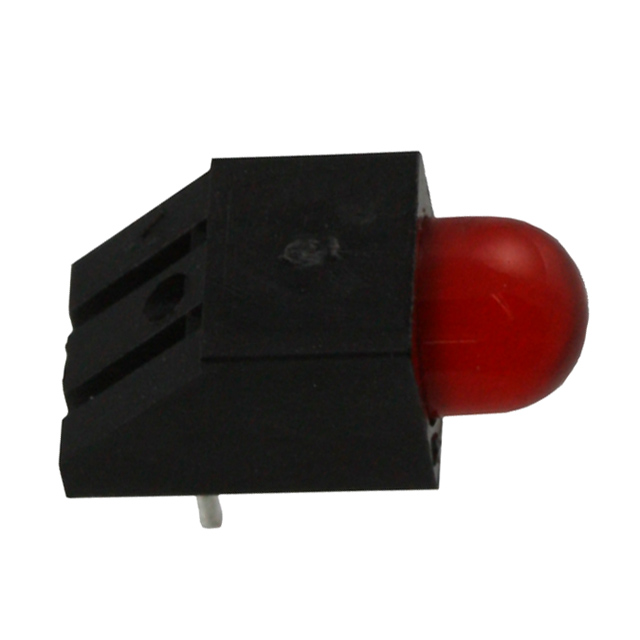

Kingbright WP1503CB/ID		627 nm	Right Angle Through Hole		Red				5 mm	T-1 3/4	50 mcd	Single			Round with Domed Top			60 °	2 V	Diffused Tinted	30 mA
Kingbright WP1503SRD	5 mm	655 nm	Through Hole	T-1 3/4	Red	Diffused	1.85 V	640 nm	5 mm	T-1 3/4	260 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Red	60 °
Kingbright WP1503GT	5 mm	565 nm	Through Hole	T-1 3/4	Green	Clear	2.2 V	568 nm	5 mm	T-1 3/4	100 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Green	30 °

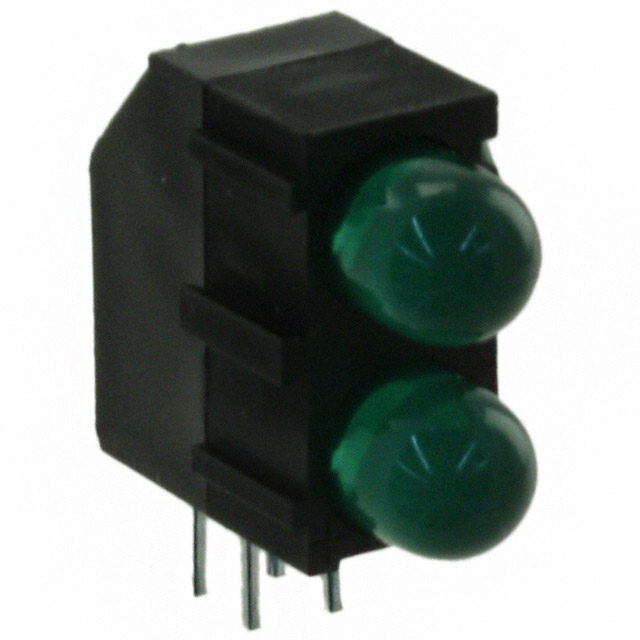

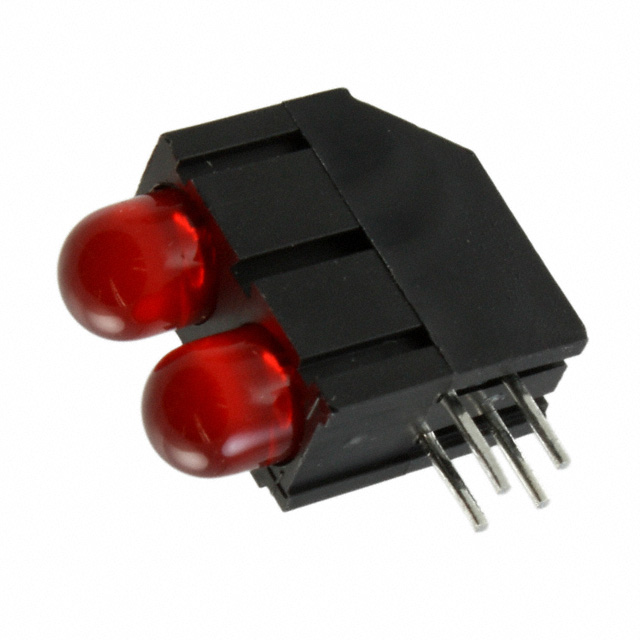

Kingbright WP1503EB/2GD		565 nm	Right Angle Through Hole		Green (x 2)				5 mm	T-1 3/4	50 mcd	2 High			Round with Domed Top			60 °		Diffused Tinted	20 mA
Kingbright WP1503SRC/D	5 mm	655 nm	Through Hole	T-1 3/4	Red	Clear	1.85 V	640 nm	5 mm	T-1 3/4	800 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Colorless	30 °
Kingbright WP1503ID	5 mm	627 nm	Through Hole	T-1 3/4	Red	Diffused	2 V	617 nm	5 mm	T-1 3/4	40 mcd	Standard	20 mA	8.6 mm	Round with Domed Top	Radial	Red	60 °
