M2032S2 Series

Catalog

SWITCH TOGGLE 3PDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Termination Style	Circuit	Switch Function	Features	Bushing Thread	Mounting Type	Actuator Length	Voltage Rating - AC	Voltage Rating - DC	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Actuator Length [x]

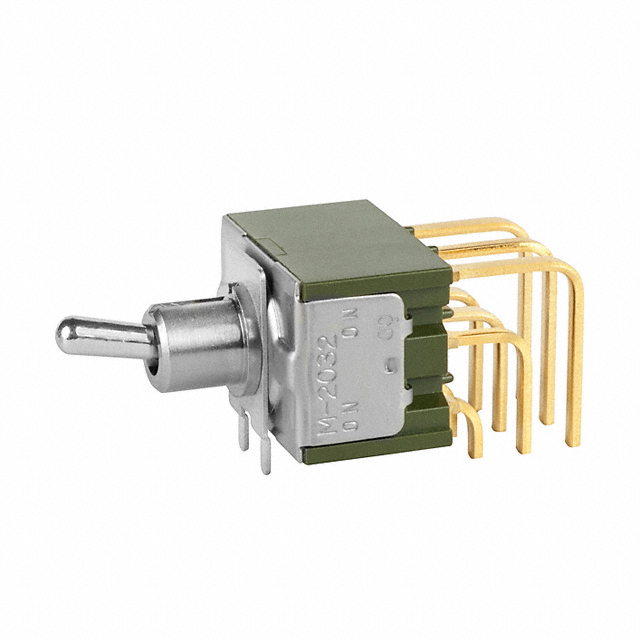

NKK Switches M2032S2A2G40	Brass Chrome Plated	50000 Cycles	PC Pin	3PDT	On-On	Epoxy Sealed Terminals	Unthreaded	Right Angle Through Hole Vertical	6.86 mm	28 V	28 V	Non-Illuminated	85 °C	-30 ░C	0.4 VA	Standard Round	6.5 mm

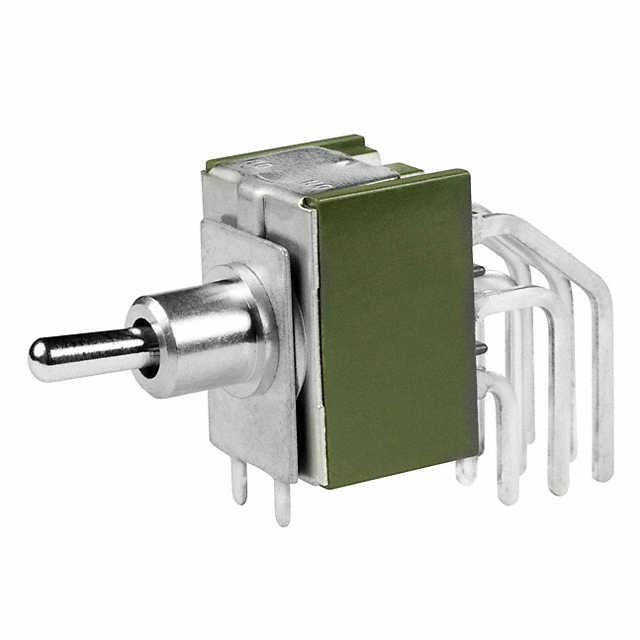

NKK Switches M2032S2A2W30	Brass Chrome Plated	25000 Steps	PC Pin	3PDT	On-On	Epoxy Sealed Terminals	Unthreaded	Right Angle Through Hole	6.86 mm	125 V	30 V	Non-Illuminated	85 °C	-30 ░C	4 A 6 A	Standard Round	6.5 mm

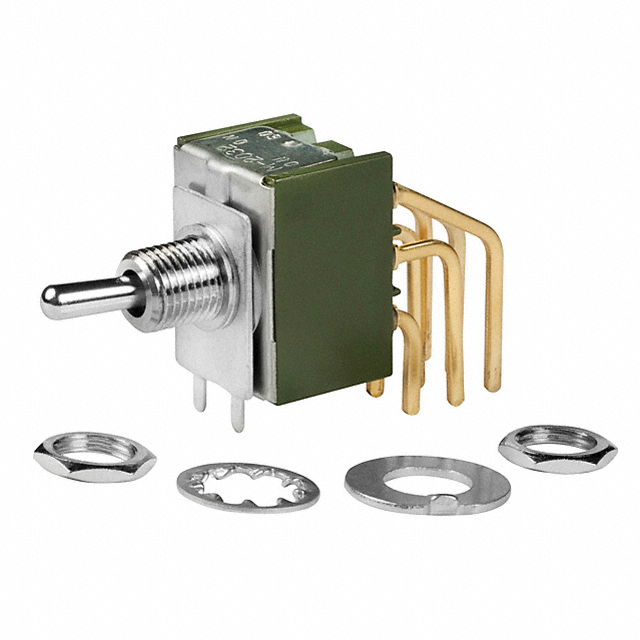

NKK Switches M2032S2A1G30	Brass Chrome Plated	50000 Cycles	PC Pin	3PDT	On-On	Epoxy Sealed Terminals	1/4-40	Right Angle Through Hole	6.86 mm	28 V	28 V	Non-Illuminated	85 °C	-30 ░C	0.4 VA	Standard Round	6.5 mm
NKK Switches M2032S2S1W01	Brass Chrome Plated	25000 Steps	Solder Lug	3PDT	On-On	Epoxy Sealed Terminals	1/4-40	Panel Mount		125 V	30 V	Non-Illuminated	85 °C	-30 ░C	4 A 6 A	Standard Round	6.5 mm	5.08 mm
