PHBC20 Series
Manufacturer: KEMET
Beta
⌘K

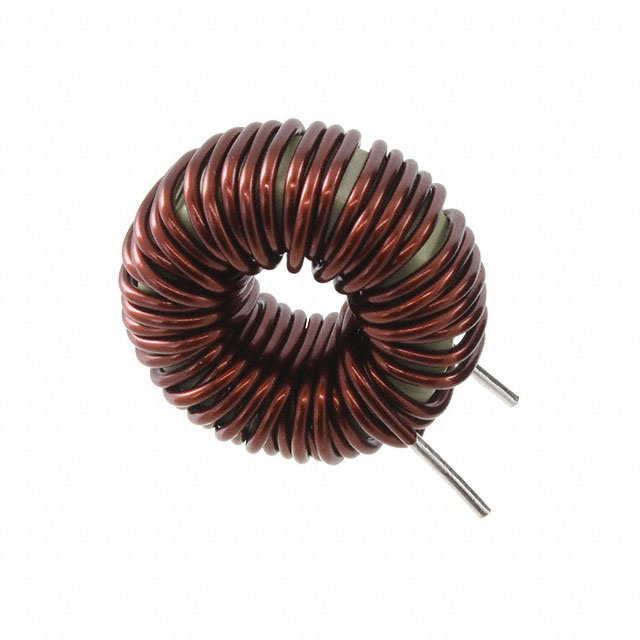

TOROIDAL INDUCTOR, PHBC SERIES, 54 µH, 12 A, 0.0115 OHM, ± 20%
| Part | DC Resistance (DCR) (Max) [Max] | Number of Lines | Current Rating (Max) [Max] | Inductance @ Frequency | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Package / Case | Package / Case | DC Resistance (DCR) | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 11.5 mOhm | 2 | 12 A | 54 µH | Through Hole | 12 Amps | 125 °C | -40 C | 1.622 in | 41.2 mm | 1.622 " | 41.2 mm | No Base Vertical | 2 Lead | 11.5 mOhm | |
 KEMET | 2 | 12 A | 100 kHz 152 µH | Through Hole | 12 Amps | 125 °C | -40 C | 1.622 in | 41.2 mm | 1.622 " | 41.2 mm | No Base Vertical | 2 Lead | 20.4 mOhm | 20.4 mOhm |
