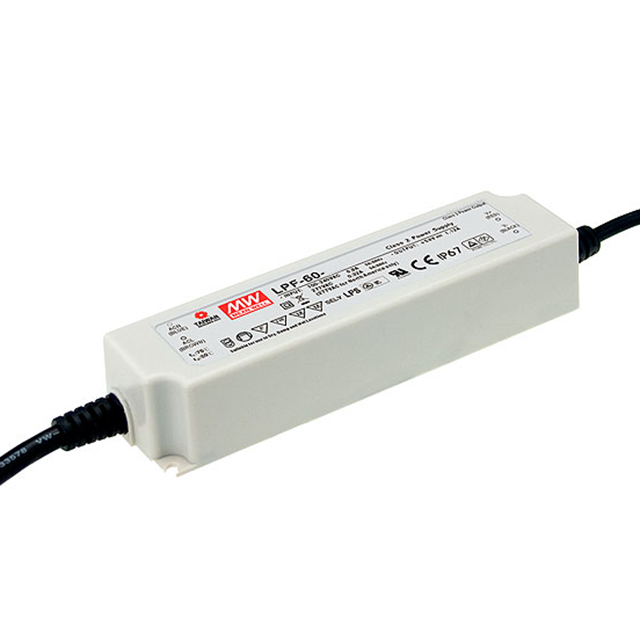

LPF-60 Series

Catalog

LED DVR CCCV ACDC 28.8-48V 1.25A

Part	Mounting Type	Voltage - Input (Min) [Min]	Type	Topology	Ratings	Efficiency	Features	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Termination Style	Voltage - Isolation	Dimming	Current - Output (Max)
MEAN WELL USA Inc. LPF-60-48	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	28.8 V	48 V	305 VAC	60 W	CB CCC CE PSE TUV UR	80 °C	-40 C	1.25 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC
MEAN WELL USA Inc. LPF-60-24	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	89 %	OCP OTP OVP SCP	1	14.4 V	24 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	2.5 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC

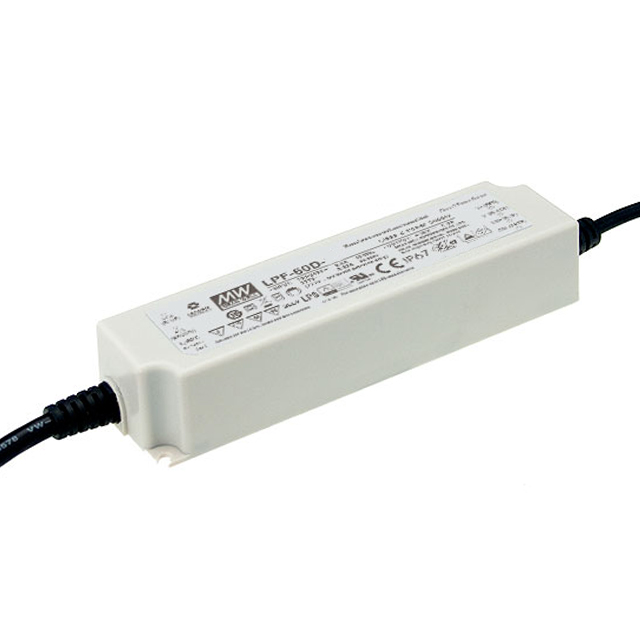

MEAN WELL USA Inc. LPF-60D-36	Chassis Mount	90 VAC	Constant Current	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	21.6 V	36 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	1.67 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC	Analog PWM
MEAN WELL USA Inc. LPF-60-36	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	21.6 V	36 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	1.67 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC
MEAN WELL USA Inc. LPF-60-54	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	32.4 V	54 V	305 VAC	60 W	CB CCC CE PSE TUV UR	80 °C	-40 C	1.12 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC
MEAN WELL USA Inc. LPF-60-12	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	86 %	OCP OTP OVP SCP	1	7.2 V	12 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C		43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC		5 A
MEAN WELL USA Inc. LPF-60-30	Chassis Mount	90 VAC	Constant Current Voltage	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1			305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	2 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC
MEAN WELL USA Inc. LPF-60D-54	Chassis Mount	90 VAC	Constant Current	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	32.4 V	54 V	305 VAC	60 W	CB CCC CE PSE TUV UR	80 °C	-40 C	1.12 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC	Analog PWM
MEAN WELL USA Inc. LPF-60D-15	Chassis Mount	90 VAC	Constant Current	AC DC Converter	IP67	87 %	OCP OTP OVP SCP	1	9 V	15 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	4 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC	Analog PWM
MEAN WELL USA Inc. LPF-60D-42	Chassis Mount	90 VAC	Constant Current	AC DC Converter	IP67	90 %	OCP OTP OVP SCP	1	25.2	42 V	305 VAC	60 W	CB CCC CE cURus ENEC PSE TUV	80 °C	-40 C	1.43 A	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	3750 VDC	Analog PWM
