MS3102R14 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR MIL SPEC CONNECTOR ER 4C 4#16S PIN RECP BOX
| Part | Shell Size - Insert | Fastening Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Qualification | Current Rating (Amps) | Shell Finish | Ingress Protection | Shell Material | Orientation [x] | Color | Contact Finish - Mating | Mounting Feature | Primary Material | Voltage Rating | Grade | Orientation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 14S-2 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | 4 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | X | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | ||
ITT Cannon, LLC | 14S-7 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | X | Olive Drab | Silver | Flange | Metal | 500 VAC 700 VDC | Military | |||
ITT Cannon, LLC | 14S-5 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | 5 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | X | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | ||

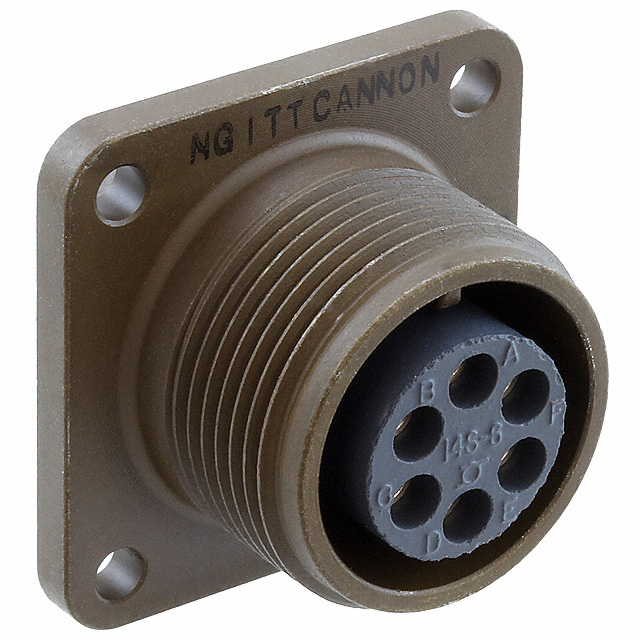

 ITT Cannon, LLC | 14S-6 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Panel Mount | 6 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | N (Normal) | ||
ITT Cannon, LLC | 14S-2 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | 4 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | Y | ||
ITT Cannon, LLC | 14S-5 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | 5 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | N (Normal) | ||
ITT Cannon, LLC | 14S-2 | Threaded | Receptacle Male Pins | -55 C | 125 °C | Panel Mount | 4 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | N (Normal) | Dust Cap | |
 ITT Cannon, LLC | 14S-5 | Threaded | Receptacle Female Sockets | -55 C | 125 °C | Panel Mount | 5 | MIL-DTL-5015 | 22 A | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Olive Drab | Silver | Flange | Metal | 200 VAC 250 V | Military | N (Normal) |
