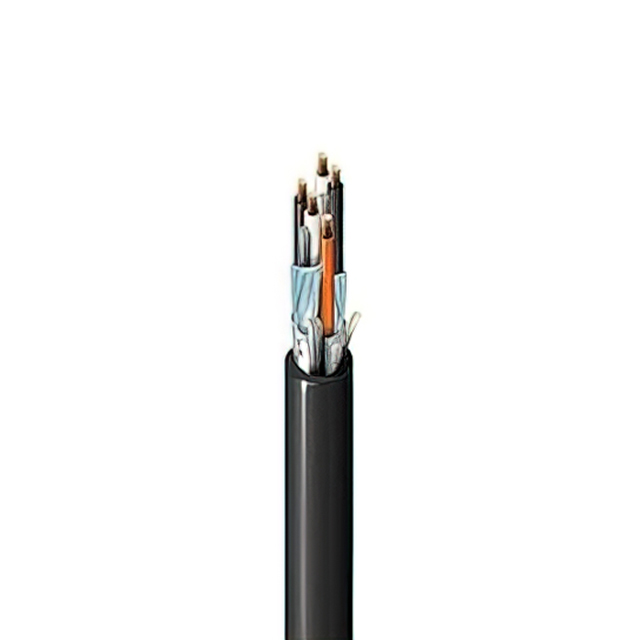

1475A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 9COND 18/22AWG
| Part | Shield Coverage | Shield Material | Features | Number of Conductors | Jacket (Insulation) Material | Voltage | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Insulation | Jacket Color | Shield Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Rip Cord | 9 | Poly-Vinyl Chloride (PVC) | 300 VDC | UL Style 2464 | 0.053 " | 1.346 mm | Instrumentation | -30 ░C | 105 ░C | 7 | 26 AWG 30 AWG | Multi-Pair | 12.04 mm | 0.474 in | Copper Bare | Poly-Vinyl Chloride (PVC) | Black | Foil | 18 AWG 22 AWG |
