TPS7A39 Series

Catalog

EVAL BOARD FOR TPS7A39

Part	Supplied Contents	Board Type	Regulator Type	Contents	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Package / Case	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Current - Supply (Max) [Max]	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Output (Max) [Max]	Voltage - Output (Max) [Min]	Voltage Dropout (Max) [Max]	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	PSRR	Protection Features	Control Features	Number of Regulators

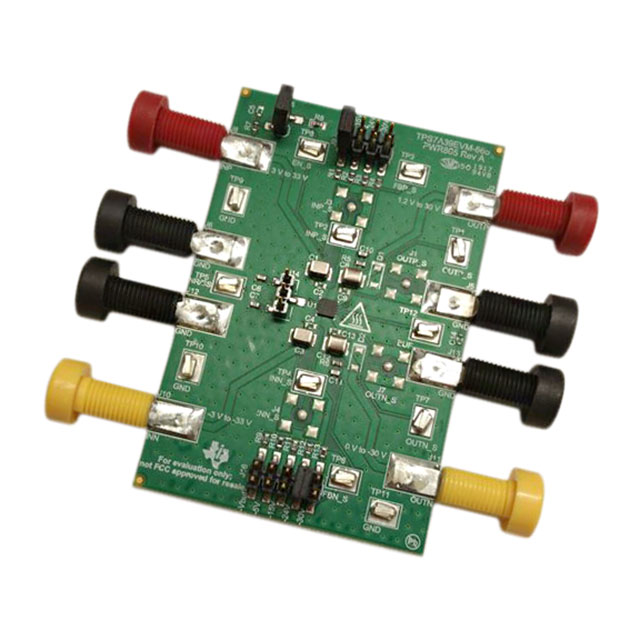

Texas Instruments TPS7A39EVM-865	Board(s)	Fully Populated	Positive and Negative Adjustable	Board(s)	2 - Dual	±3V	±33V	150 mA	0 V 30 VDC	-30 V 1.2 V	TPS7A39

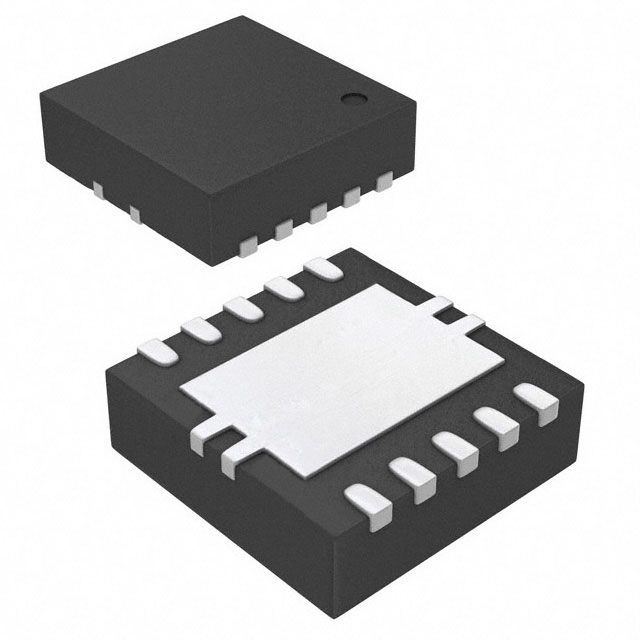

Texas Instruments TPS7A3901DSCT								150 mA				10-WFDFN Exposed Pad	Positive and Negative	150 °C	-55 °C	Surface Mount	Adjustable	904 µA	10-WSON (3x3)	150 çA	30 V	-30 V	0.5 V	33 V	0 V 1.2 V	69 dB	Over Temperature Under Voltage Lockout (UVLO)	Current Limit Enable Soft Start	2
Texas Instruments TPS7A3901DSCR								150 mA				10-WFDFN Exposed Pad	Positive and Negative	150 °C	-55 °C	Surface Mount	Adjustable	904 µA	10-WSON (3x3)	150 çA	30 V	-30 V	0.5 V	33 V	0 V 1.2 V	69 dB	Over Temperature Under Voltage Lockout (UVLO)	Current Limit Enable Soft Start	2
