85000 Series Series

Subminiature Pushbutton Switches Pushbutton Switches Pushbutton

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Subminiature Pushbutton Switches Pushbutton Switches Pushbutton

Part	Termination Style	Features	Voltage Rating - AC	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Mounting Type	Actuator Marking	Electrical Life	Type	Current Rating (Amps)

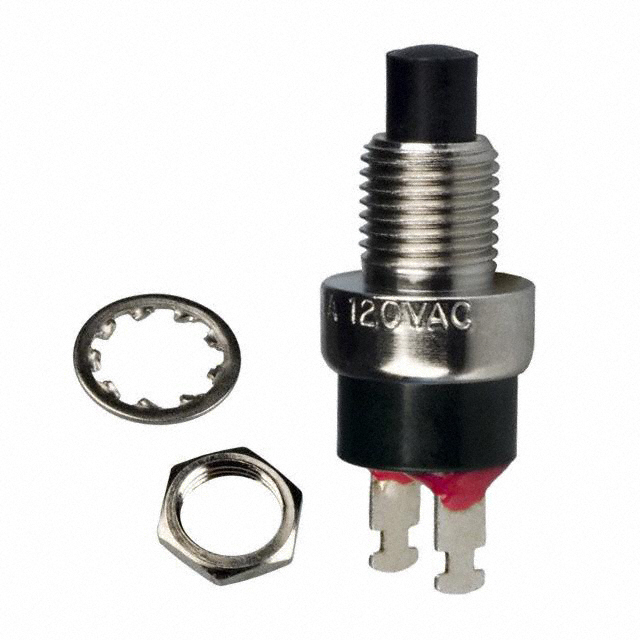

Littelfuse/Commercial Vehicle Products 8532MZQE3	Solder Lug	Epoxy Sealed Terminals	120 V	SPST-NO	28 V	Red	65 °C	-30 ░C	Round Plunger	0.25 in	Off-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard

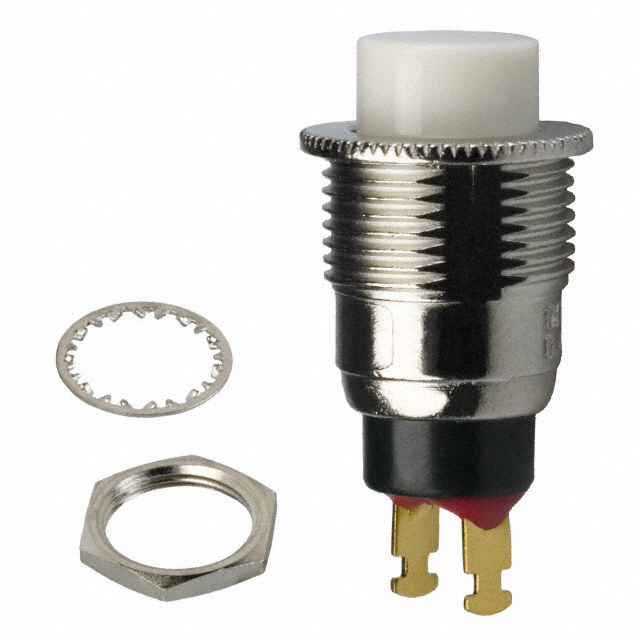

Littelfuse/Commercial Vehicle Products 8532T1ZBE1	Solder Lug	Epoxy Sealed Terminals	20 V	SPST-NO	20 V	White	65 °C	-30 ░C	Button Round	11.91 mm	Off-Mom	Panel Mount Front	No Marking	250000 Cycles	Standard	0.4 VA
Littelfuse/Commercial Vehicle Products 8531SCQE2	PC Pin	Epoxy Sealed Terminals	120 V	SPST-NO	28 V	Black	65 °C	-30 ░C	Round Plunger	0.25 in	Off-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard
Littelfuse/Commercial Vehicle Products 8532MZQE2	Solder Lug	Epoxy Sealed Terminals	120 V	SPST-NO	28 V	Black	65 °C	-30 ░C	Round Plunger	0.25 in	Off-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard

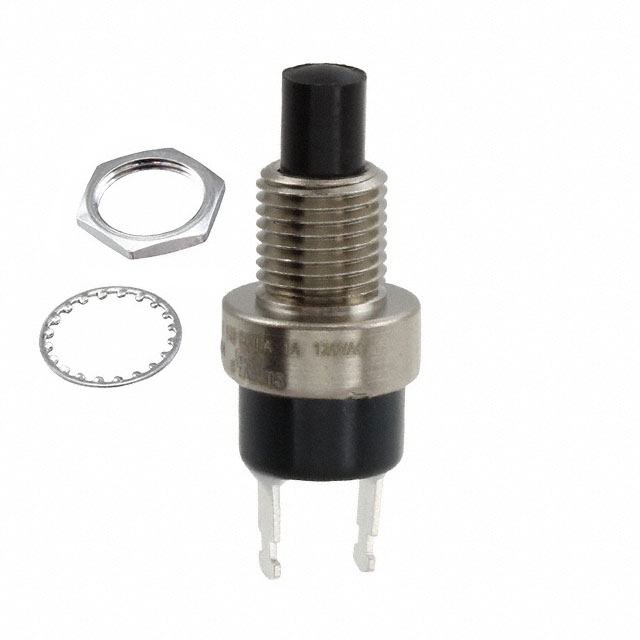

Littelfuse/Commercial Vehicle Products 8534SZQE2	Solder Lug	Epoxy Sealed Terminals	120 V	SPST-NC	28 V	Black	65 °C	-30 ░C	Round Plunger	0.25 in	On-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard
Littelfuse/Commercial Vehicle Products 8534T1ZBE2	Solder Lug	Epoxy Sealed Terminals	20 V	SPST-NC	20 V	Black	65 °C	-30 ░C	Button Round	11.91 mm	On-Mom	Panel Mount Front	No Marking	250000 Cycles	Standard	0.4 VA

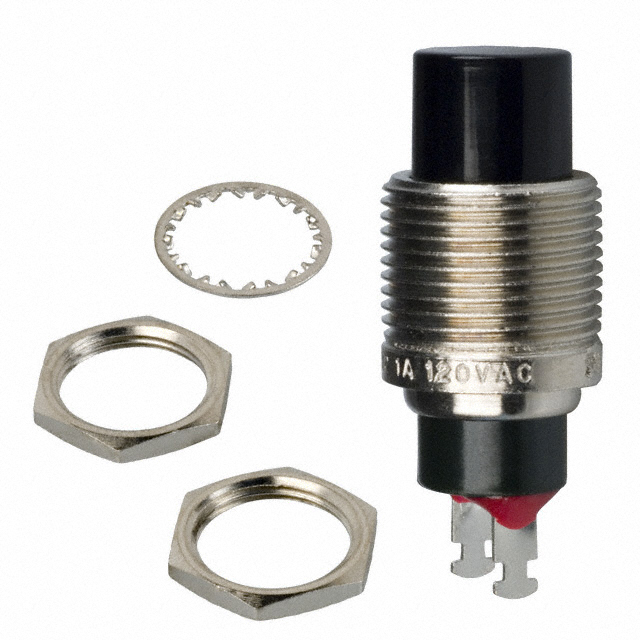

Littelfuse/Commercial Vehicle Products 8532TZQE2	Solder Lug	Epoxy Sealed Terminals	120 V	SPST-NO	28 V	Black	65 °C	-30 ░C	Button Round	11.91 mm	Off-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard

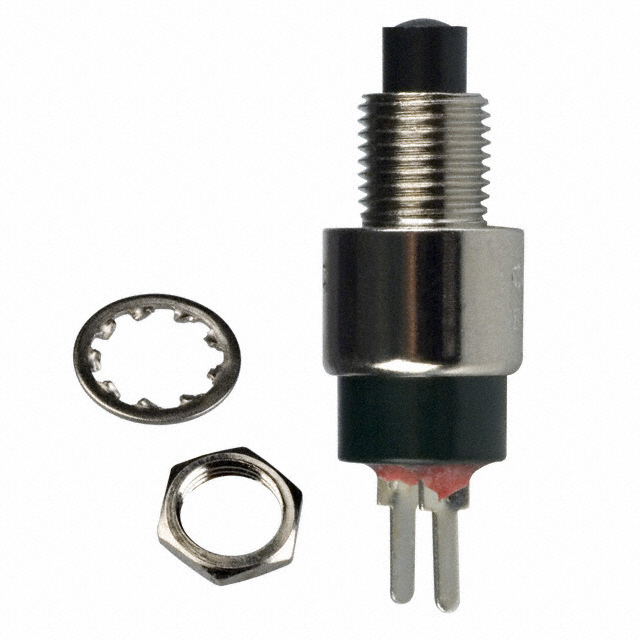

Littelfuse/Commercial Vehicle Products 8533MCQE2	PC Pin	Epoxy Sealed Terminals	120 V	SPST-NC	28 V	Black	65 °C	-30 ░C	Round Plunger	0.25 in	On-Mom	Panel Mount Rear	No Marking	250000 Cycles	Standard
Littelfuse/Commercial Vehicle Products 8551TZGE2	Solder Lug	Epoxy Sealed Terminals	120 V	SPST-NO	28 V	Black	65 °C	-30 ░C	Button Round	11.91 mm	Off-Mom	Panel Mount Rear	No Marking	10000 Cycles	Standard	3 A

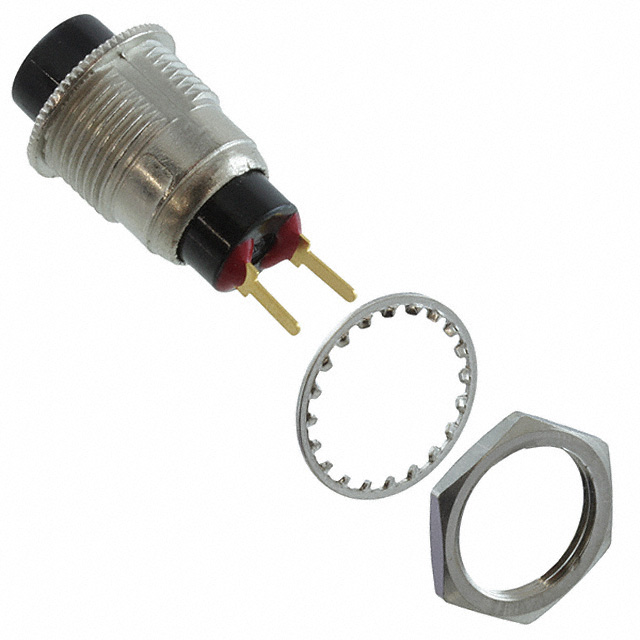

Littelfuse/Commercial Vehicle Products 8532T1CBE2	PC Pin	Epoxy Sealed Terminals	20 V	SPST-NO	20 V	Black	65 °C	-30 ░C	Button Round	11.91 mm	Off-Mom	Panel Mount Front	No Marking	250000 Cycles	Standard	0.4 VA

Catalog

Subminiature Pushbutton Switches Pushbutton Switches Pushbutton

Key Features

• Pre-travel or over-travel models available

• Reliable contact design

• Ratings up to 3 A

Description

For those designers that need a reliable pushbutton switch for their networking, computing, telecommunications or detection products, C&K’s 8500 series of subminiature pushbutton switches are the perfect fit. Designed for ratings up to 3A, the 8500 switches have a reliable contact design and are available in pre-travel or over-travel models.
