BD00HA5 Series

Catalog

LDO, ADJ, 7V, 0.5A, -40 TO 105DEG C

Part	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Output (Min/Fixed)	Protection Features	Control Features	Voltage Dropout (Max) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Configuration	Number of Regulators	Current - Output	Current - Quiescent (Iq)	Voltage - Output (Max) [Max]	Voltage Dropout (Max)	Output Type	Current - Supply (Max) [Max]

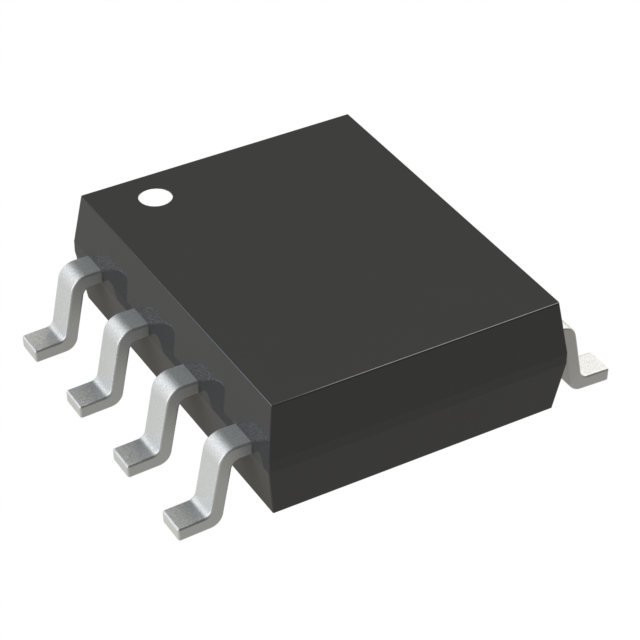

Rohm Semiconductor BD00HA5MEFJ-LBH2	8 V	8-HTSOP-J	1.5 V	Over Current Over Temperature Short Circuit	Enable Soft Start	1.2 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	-40 C	105 ░C	Surface Mount	Positive	1	500 mA	1.2 mA	7 V
Rohm Semiconductor BD00HA5WEFJ-E2	8 V	8-HTSOP-J	1.5 V	Over Current Over Temperature Soft Start	Enable		8-SOIC Exposed Pad	3.9 mm	0.154 in	-25 °C	85 °C	Surface Mount	Positive	1	500 mA	0.6 mA	7 V	0.9 V	Adjustable	900 µA
