1564522 Series

Catalog

CONN PLUG HSG 8POS 6.00MM

Part	Note	Number of Rows	Connector Type	Insulation Material	Mounting Type	Color	Contact Termination	Contact Type	Features	Row Spacing [Max]	Row Spacing [Max]	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type

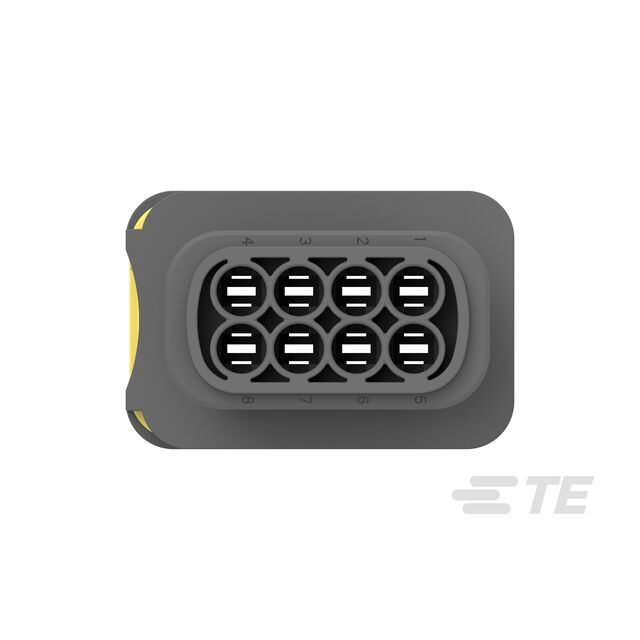

TE Connectivity Raychem Cable Protection 1-1564522-1	Contacts Not Included	2	Plug	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Black	Crimp	Tab	Sealed	0.236 in	6 mm	0.236 in	6 mm	140 °C	-40 °C	8	Slide-On
TE Connectivity Raychem Cable Protection 2-1564522-1	Contacts Not Included	2	Plug	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Gray	Crimp	Tab	Sealed	0.236 in	6 mm	0.236 in	6 mm	140 °C	-40 °C	8	Slide-On
