XDUG14 Series
Manufacturer: SunLED
Beta
⌘K

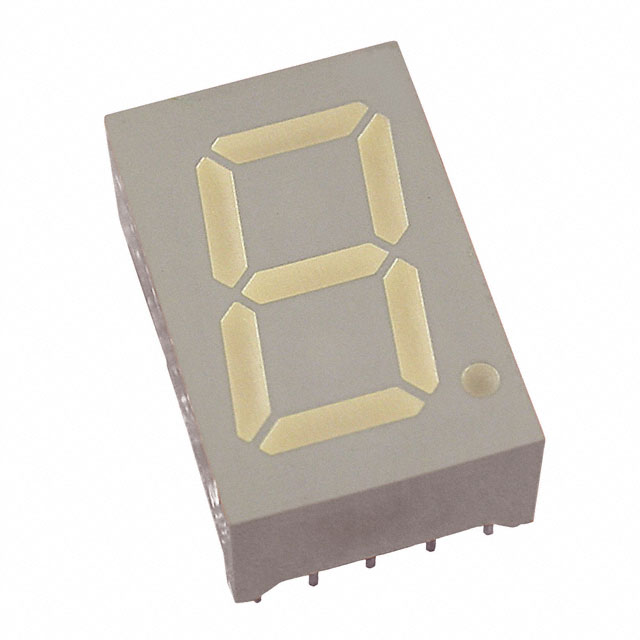

DISPLAY 7SEG 0.56" SGL GRN 10DIP
| Part | Number of Characters | Color | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Wavelength - Peak | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Package / Case | Millicandela Rating | Current - Test | Display Type | Common Pin | Number of Characters | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 1 | Green | 2 V | 62.5 mW | 0.315 in | 0.5 " | 0.75 in | 12.7 mm | 19.05 mm | 8 mm | 565 nm | 0.56 in | 14.22 mm | 0.6 in 15.24 mm | 10-DIP | 11 mcd | 10 mA | 7-Segment | Common Anode | |||

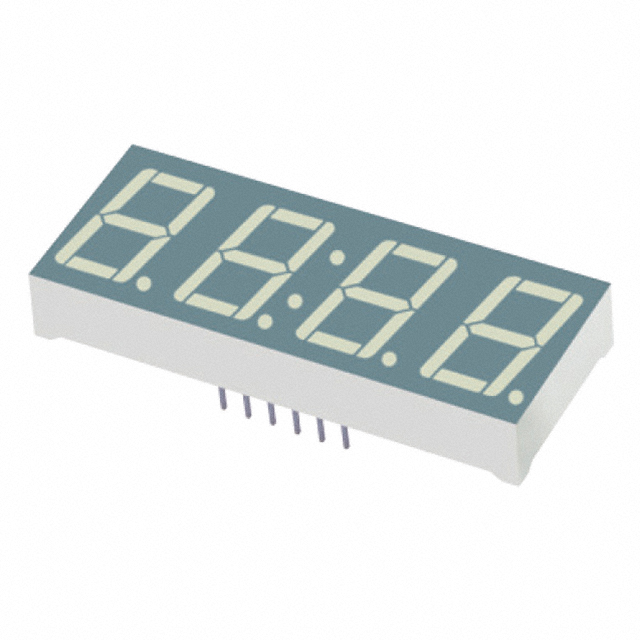

 SunLED | Green | 2 V | 62.5 mW | 0.748 in | 0.319 " | 1.98 " | 8.1 mm | 50.3 mm | 19 mm | 565 nm | 0.56 in | 14.22 mm | 12-DIP | 4 mcd | 10 mA | 7-Segment | Common Anode | 4 | 15.24 mm | 0.6 in | ||
 SunLED | Green | 2 V | 62.5 mW | 0.748 in | 0.319 " | 1.98 " | 8.1 mm | 50.3 mm | 19 mm | 565 nm | 0.56 in | 14.22 mm | 12-DIP | 4 mcd | 10 mA | 7-Segment | Common Anode | 4 | 15.24 mm | 0.6 in |
