9258 Series
Manufacturer: Belden Inc.
Beta
⌘K

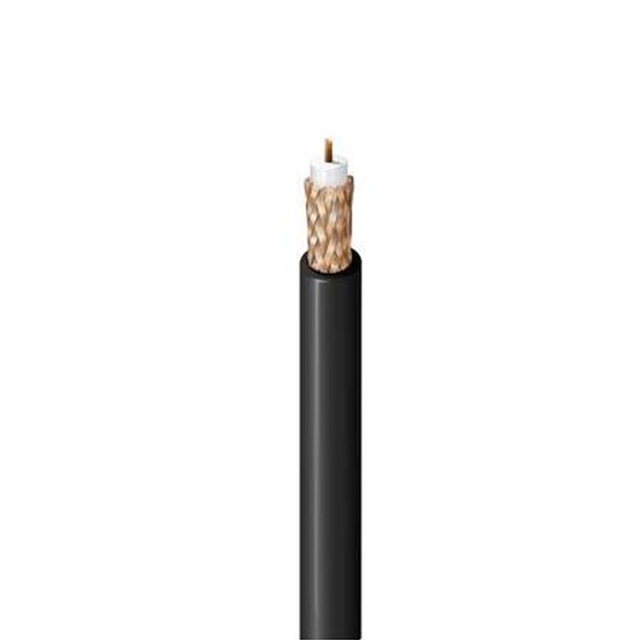

RG-8X TYPE COAX
| Part | Shield Coverage | Shield Material | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Cable Group | Length [x] | Length [x] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Material | Shield Type | Wire Gauge | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | Copper Bare | 82 | Copper Bare | 3.94 mm | 0.155 in | 80 °C | -40 C | Black | RG-8 | 304.8 m | 1000 ft | Coaxial | 19 | 29 AWG | RF Signal | Poly-Vinyl Chloride (PVC) | Braid | 16 AWG | 50 Ohms |
Belden Inc. | 95 % | Copper Bare | 82 | Copper Bare | 3.94 mm | 0.155 in | 80 °C | -40 C | Black | RG-8 | 304.8 m | 1000 ft | Coaxial | 19 | 29 AWG | RF Signal | Poly-Vinyl Chloride (PVC) | Braid | 16 AWG | 50 Ohms |
Belden Inc. | 95 % | Copper Bare | 82 | Copper Bare | 3.94 mm | 0.155 in | 80 °C | -40 C | White | RG-8 | 304.8 m | 1000 ft | Coaxial | 19 | 29 AWG | RF Signal | Poly-Vinyl Chloride (PVC) | Braid | 16 AWG | 50 Ohms |
