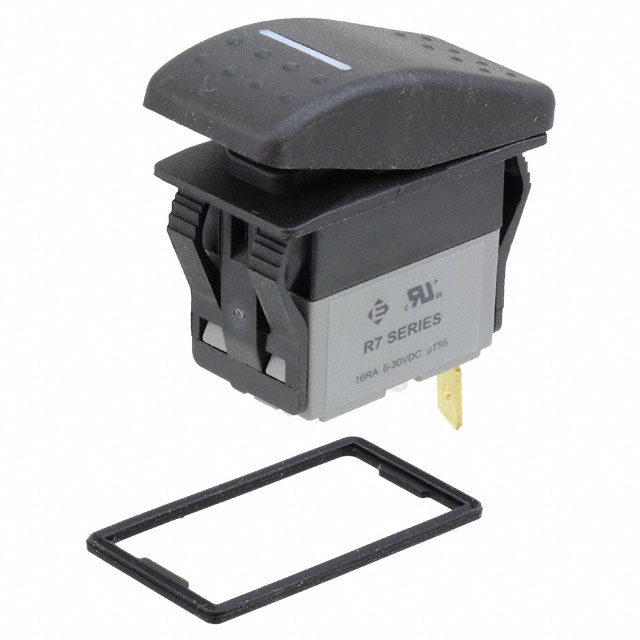

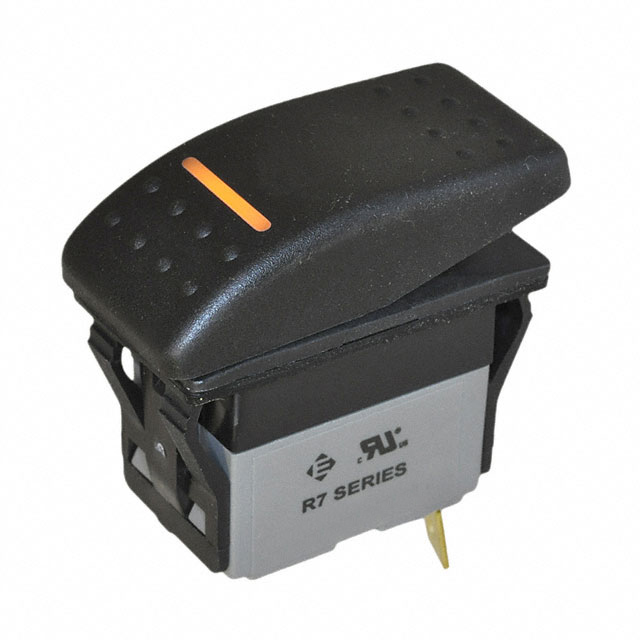

R711FB2 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 16A 30V
| Part | Electrical Life | Termination Style | Circuit | Mounting Type | Current Rating (Amps) | Actuator Type | Color - Actuator/Cap | Ingress Protection | Switch Function | Actuator Marking | Voltage Rating - DC | Illumination Type, Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Voltage (Nominal) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | SPST | Panel Mount Snap-In | 16 A | Convex (Reverse V) - Illuminated | Black | IP67 - Dust Tight Waterproof | On-Off | No Marking | 30 V | Green LED | 37 mm | 21.1 mm | 12 VDC | cULus |
 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | SPST | Panel Mount Snap-In | 16 A | Convex (Reverse V) - Illuminated | Black | IP67 - Dust Tight Waterproof | On-Off | No Marking | 30 V | Amber LED | 37 mm | 21.1 mm | 12 VDC | cULus |
