BLC8 Series

Catalog

RF MOSFET LDMOS 28V DFM6

Part	Power - Output	Voltage - Rated	Mounting Type	Current - Test	Voltage - Test	Package / Case	Supplier Device Package	Configuration	Gain	Frequency [Min]	Frequency [Max]	Current Rating (Amps)
Ampleon USA Inc. BLC8G22LS-450AVZ	85 W	65 V	Chassis Mount	1 A	28 V	SOT-1258-3	DFM6	Common Source Dual	14 dBi	2.11 GHz	2.17 GHz

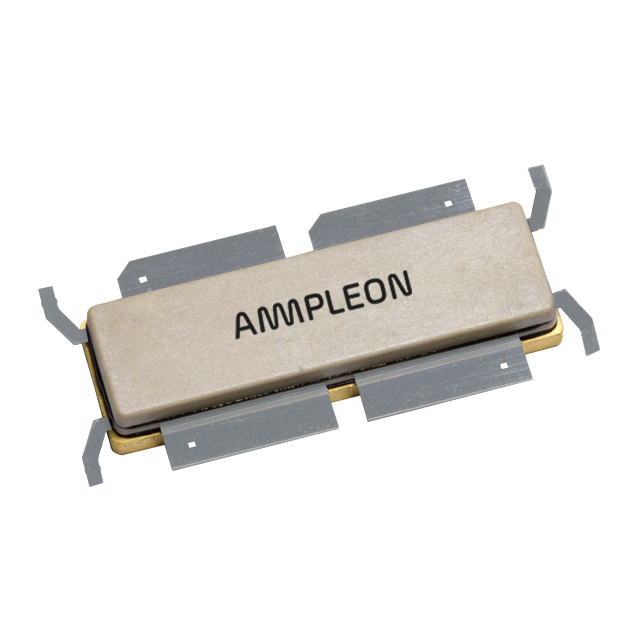

Ampleon USA Inc. BLC8G27LS-210PVZ	65 W	65 V	Chassis Mount	1.73 A	28 V	SOT-1251-3	8-DFM	Common Source Dual	17 dBi	2.6 GHz	2700 MHz
Ampleon USA Inc. BLC8G22LS-450AVY	85 W	65 V	Chassis Mount	1 A	28 V	SOT-1258-3	DFM6	Common Source Dual	14 dBi	2.11 GHz	2.17 GHz

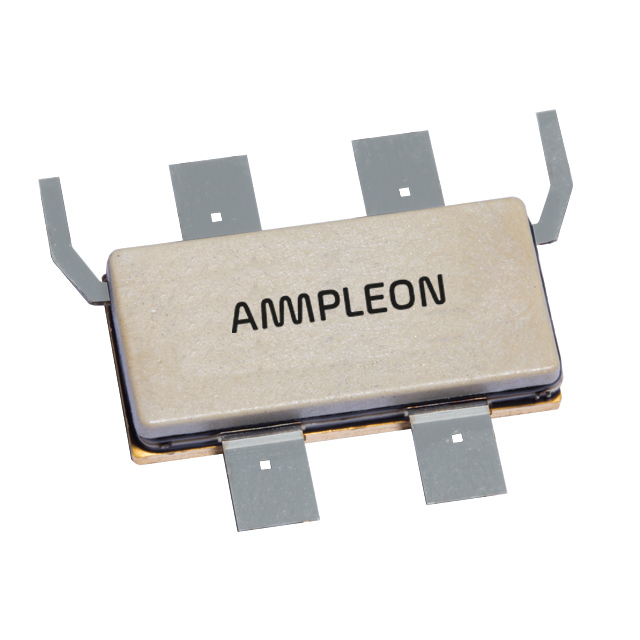

Ampleon USA Inc. BLC8G27LS-100AVZ	17.8 W	65 V	Chassis Mount	250 mA	28 V	SOT-1275-1	DFM6	Common Source Dual	15.5 dBi	2.5 GHz	2.69 GHz
Ampleon USA Inc. BLC8G27LS-60AVY			Chassis Mount			SOT-1275-3	SOT-1275-3

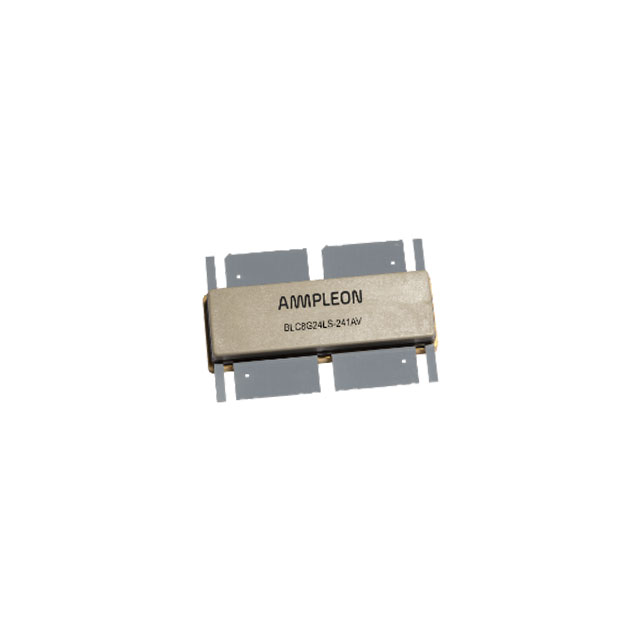

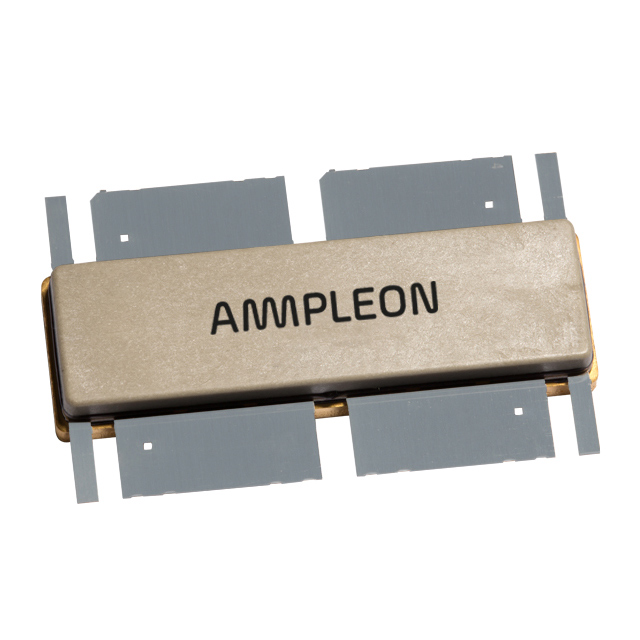

Ampleon USA Inc. BLC8G24LS-241AVY	56 W	65 V	Chassis Mount	500 mA	28 V	SOT-1252-1	DFM8	Common Source Dual	14.5 dBi
Ampleon USA Inc. BLC8G27LS-140AVY	28 W	65 V	Chassis Mount	320 mA	28 V	SOT-1275-1	DFM6	Common Source Dual	14.5 dBi	2.5 GHz	2.69 GHz
Ampleon USA Inc. BLC8G27LS-180AVZ	28 W	65 V	Chassis Mount	200 mA	28 V	SOT-1275-3	SOT-1275-3	Common Source Dual	14 dBi	2.5 GHz	2.69 GHz
Ampleon USA Inc. BLC8G09XS-400AVTY	540 W	65 V		880 mA	32 V	SOT-1258-7	SOT-1258-7		17 dBi	791 MHz	960 MHz	2.8 µA
Ampleon USA Inc. BLC8G27LS-240AVJ	56 W	65 V	Chassis Mount	500 mA	28 V	SOT-1252-1	DFM8	Common Source Dual	14 dBi	2.5 GHz	2.69 GHz
