RT9741 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

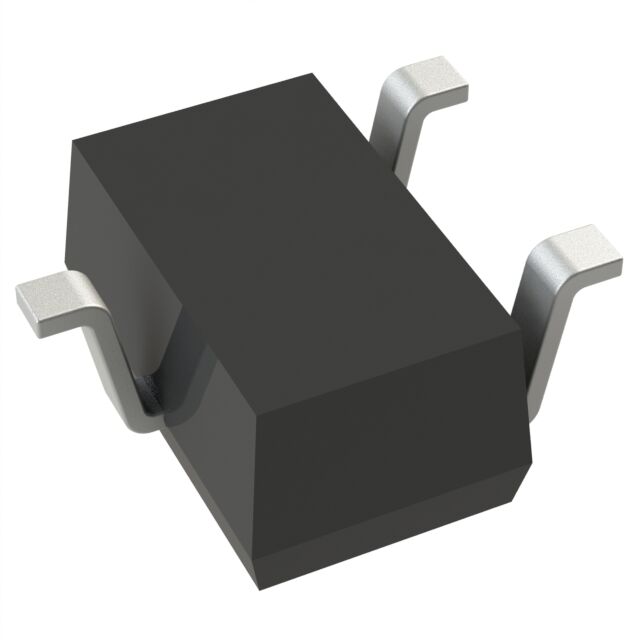

IC PWR SWITCH N-CHAN 1:1 SOT23-3
| Part | Output Type | Supplier Device Package | Fault Protection | Ratio - Input:Output | Package / Case | Rds On (Typ) | Input Type | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) [Max] | Interface | Number of Outputs | Switch Type | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | N-Channel | SOT-23-3 | Current Limiting (Fixed) Over Temperature Reverse Current UVLO | 1:1 | SC-59 SOT-23-3 TO-236-3 | 100 mOhm | Non-Inverting | Surface Mount | 2.7 V | 5.5 V | 85 C | -40 ¯C | Not Required | 1.5 A | On/Off | 1 | USB Switch | High Side |
 Richtek USA Inc. | N-Channel | SOT-23-3 | Current Limiting (Fixed) Over Temperature Reverse Current UVLO | 1:1 | SC-59 SOT-23-3 TO-236-3 | 120 mOhm | Non-Inverting | Surface Mount | 2.7 V | 5.5 V | 85 C | -40 ¯C | Not Required | 700 mA | On/Off | 1 | USB Switch | High Side |
