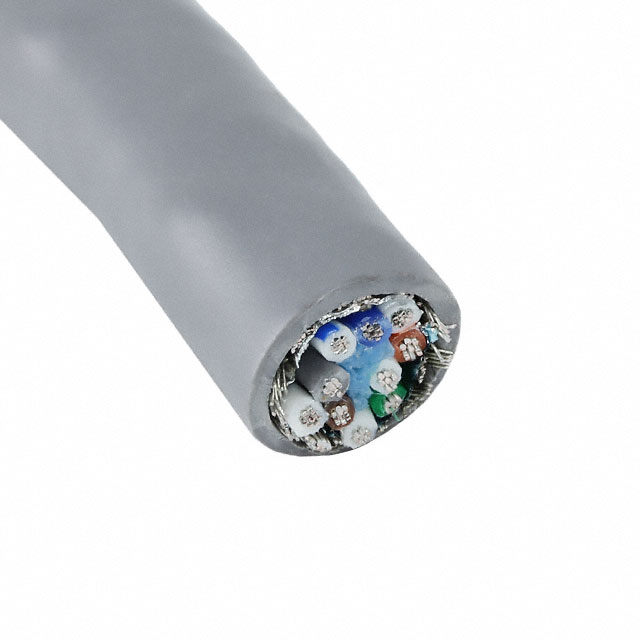

6365 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Cable Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Features | Length | Length | Shield Type | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 7.26 mm | 0.286 in | Slate | Poly-Vinyl Chloride (PVC) | Multi-Pair | 10 | 7 | 32 AWG | 24 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Drain Wire | 304.8 m | 1000 ft | Braid Foil | 300 VDC | 80 °C | -20 ░C | Copper Tinned | UL Style 2464 | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 7.26 mm | 0.286 in | Slate | Poly-Vinyl Chloride (PVC) | Multi-Pair | 10 | 7 | 32 AWG | 24 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Drain Wire | Braid Foil | 300 VDC | 80 °C | -20 ░C | Copper Tinned | UL Style 2464 | 100 ft | 30.5 m |
