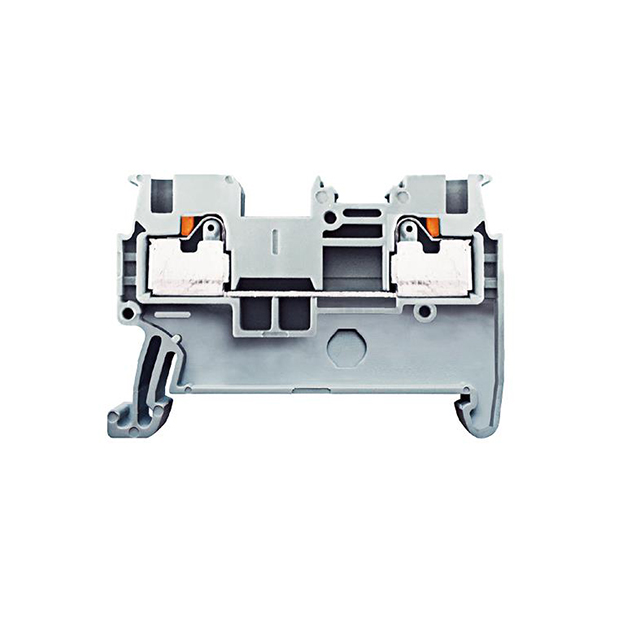

DPT1.5 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
1.5MM/3 CONNECTION/GRAY/PUSH IN
| Part | Material - Insulation | Material Flammability Rating | Stripping Length [Max] | Stripping Length [Min] | Voltage - IEC | Termination Style | Color | Type | Current - IEC | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Number of Levels | Current - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Terminal - Width [y] | Voltage - UL | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 10 mm | 8 mm | 500 V | Push In | Green | Feed Through | 17.5 A | 1.5 mm² | 0.14 mm² | 1 | 5 A | 26 AWG | 14 AWG | 3.5 mm | 600 V | |
 MEAN WELL USA Inc. | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 10 mm | 8 mm | 500 V | Push In | Gray | Feed Through | 17.5 A | 1.5 mm² | 0.14 mm² | 1 | 5 A | 26 AWG | 14 AWG | 3.5 mm | 600 V | 2 |
