3609-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

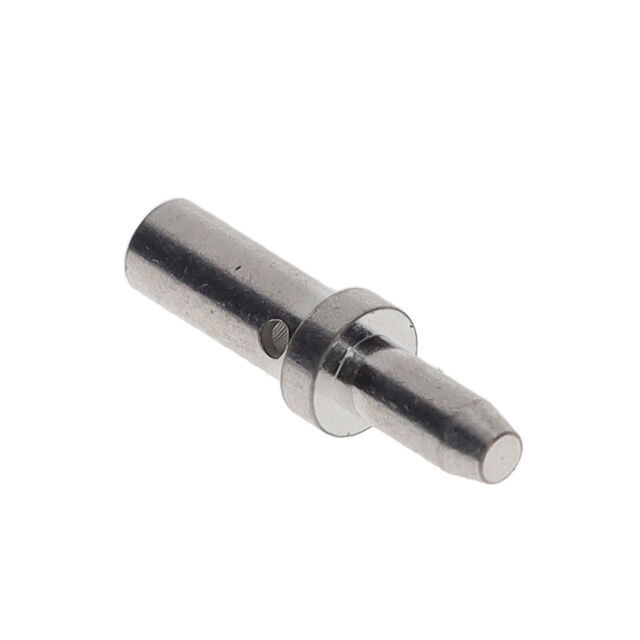

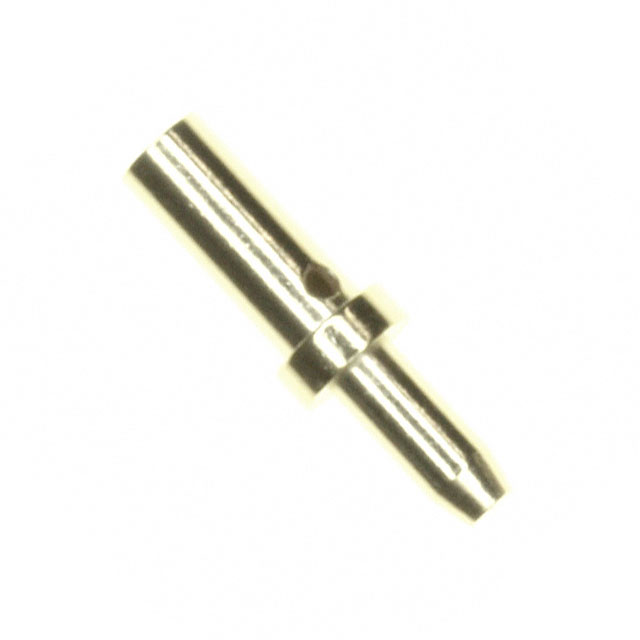

CONN PC PIN CIRC .080DIA TINLEAD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Insulation | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Termination | Terminal Style | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.142 in | 3.61 mm | Free Hanging (In-Line) | 0.496 in | 12.6 mm | 6.35 mm | 0.25 " | 0.2 in | 5.08 mm | Tin-Lead | Non-Insulated | 2.03 mm | 0.08 in | Crimp | Wire | 0.103 in | 2.62 mm | PC Pin | 200 Áin | 5.08 Ám | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.142 in | 3.61 mm | Free Hanging (In-Line) | 0.496 in | 12.6 mm | 6.35 mm | 0.25 " | 0.2 in | 5.08 mm | Gold | Non-Insulated | 2.03 mm | 0.08 in | Crimp | Wire | 0.103 in | 2.62 mm | PC Pin | 10 Áin | 0.25 Ám | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.142 in | 3.61 mm | Free Hanging (In-Line) | 0.496 in | 12.6 mm | 6.35 mm | 0.25 " | 0.2 in | 5.08 mm | Tin | Non-Insulated | 2.03 mm | 0.08 in | Crimp | Wire | 0.103 in | 2.62 mm | PC Pin | 200 Áin | 5.08 Ám | Brass |
 Mill-Max Manufacturing Corp. | 0.142 in | 3.61 mm | Free Hanging (In-Line) | 0.496 in | 12.6 mm | 6.35 mm | 0.25 " | 0.2 in | 5.08 mm | Gold | Non-Insulated | 2.03 mm | 0.08 in | Crimp | Wire | 0.103 in | 2.62 mm | PC Pin | 20 µin | 0.51 µm | Brass Alloy |
