CABLE 379 Series
Manufacturer: GCT
Beta
⌘K

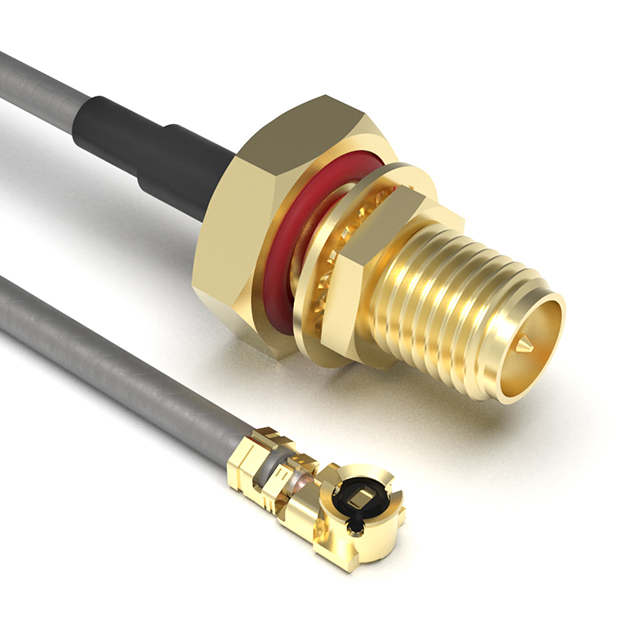

CBL ASY IPEX MHF1-SMA J-P 5.906"
| Part | Frequency - Max [Max] | Length | Length | Cable Type | Cable Type [diameter] | Style | Overall Impedance | 2nd Contact Gender | Ingress Protection | 2nd Connector | Cable Impedance | 1st Connector Mounting Type | Features | 2nd Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | 1st Contact Gender | 1st Connector Mounting Feature | 1st Connector | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6000 MHz | 150 mm | 5.906 in | Coaxial Cable | 1.13 mm | I-PEX MHF1 to SMA | 50 Ohms | Female | IP67/IP68 | I-PEX MHF1 Plug Right Angle | 50 Ohms | Panel Mount | IP Rated Unmated | Free Hanging (In-Line) | 85 °C | -40 C | Female | Bulkhead - Front Side Nut | RP-SMA Jack | Gray | |
6000 MHz | 150 mm | 5.906 in | Coaxial Cable | 1.13 mm | IPEX MHF1 to SMA | 50 Ohms | Female | IP67/IP68 | IPEX MHF1 Plug Right Angle | 50 Ohms | Panel Mount | IP Rated Unmated | Free Hanging (In-Line) | 85 °C | -40 C | Female | Bulkhead - Front Side Nut | RP-SMA Jack | Gray |
