NRPN282 Series

Catalog

CONN HEADER VERT 56POS 2MM

Part	Contact Finish Thickness - Post	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Material	Fastening Type	Contact Length - Post [custom]	Contact Length - Post	Number of Rows [custom]	Insulation Material	Contact Finish - Mating	Number of Positions

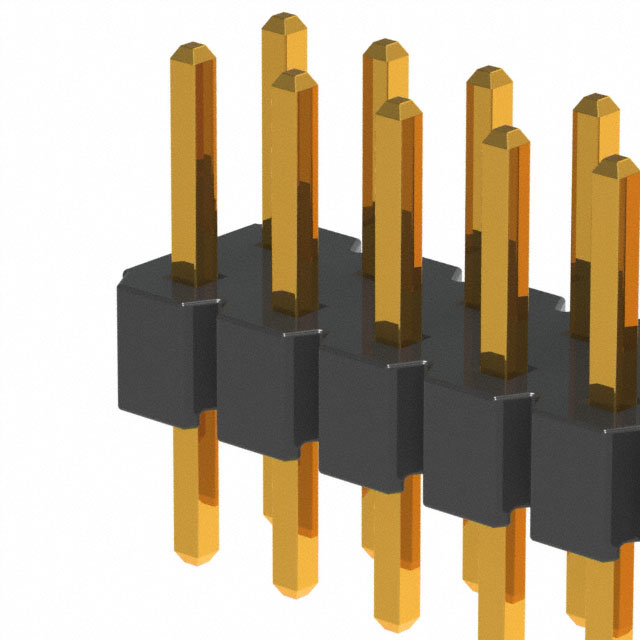

Sullins Connector Solutions NRPN282PAEN-RC	Flash	Through Hole	All	Gold	150 VDC	Black	Flash	Square	2 mm	0.079 in	Male Pin	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	0.33 in	8.38 mm	2 A	UL94 V-0	Unshrouded	0.141 in	3.6 mm	Solder	2 mm	0.079 in	Header	Brass	Push-Pull	0.11 in	2.79 mm	2	Nylon 6T Polyamide (PA6T)	Gold	56
Sullins Connector Solutions NRPN282PARN-RC	Flash	Right Angle Through Hole	All	Gold	150 VDC	Black	Flash	Square	2 mm	0.079 in	Male Pin	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable			2 A	UL94 V-0	Unshrouded	0.141 in	3.6 mm	Solder	4 mm	0.157 in	Header	Brass	Push-Pull	0.11 in	2.79 mm	2	Nylon 6T Polyamide (PA6T)	Gold	56
