R11455 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB M BHD C100
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Includes | Voltage Rating | Mating Cycles | Body Finish | Impedance | Number of Ports | Connector Style | Mounting Feature | Connector Type | Housing Color | Center Contact Material | Mounting Type | Contact Termination | Shield Termination | Fastening Type | Frequency - Max [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

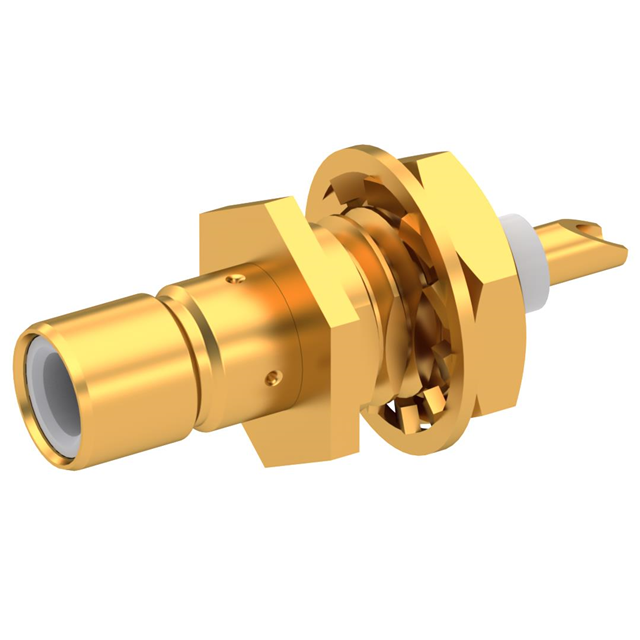

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 Lockwasher 1 Nut | 500 V | 500 | Gold | 50 Ohms | 1 | SMB | Bulkhead - Rear Side Nut | Jack Male Pin | Gold | Brass | Panel Mount | Solder Cup | Solder | Snap-On | 4 GHz | |

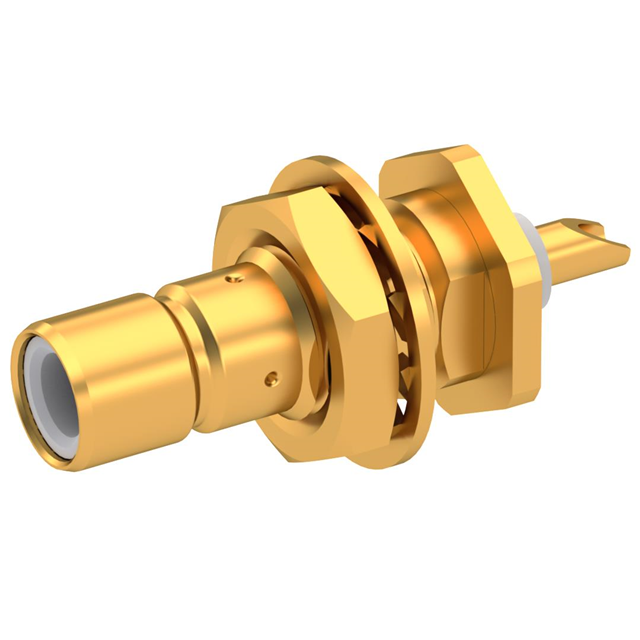

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 500 V | 500 | Gold | 50 Ohms | 1 | SMB | Bulkhead - Front Side Nut | Jack Male Pin | Gold | Brass | Panel Mount | Solder Cup | Solder | Snap-On | 4 GHz | Extended Insulation | |

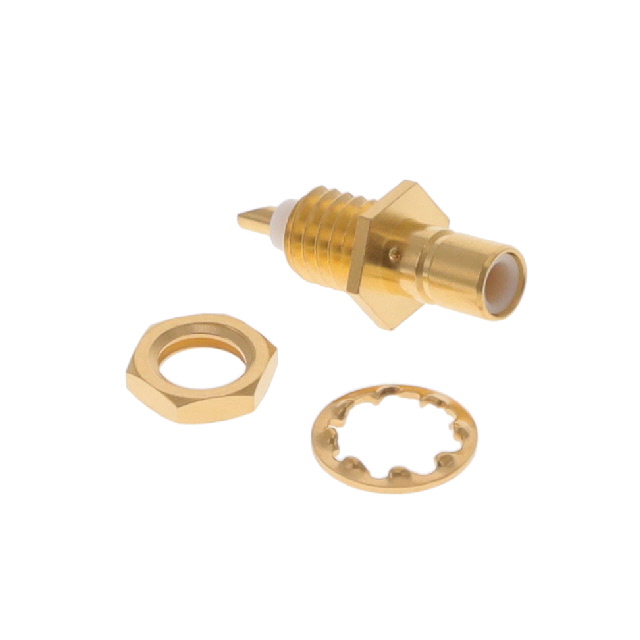

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 250 V | 500 | Gold | 50 Ohms | 1 | SMB | Bulkhead - Rear Side Nut | Jack Male Pin | Gold | Brass | Panel Mount | Solder Cup | Solder | Snap-On | 4 GHz | Extended Insulation |
