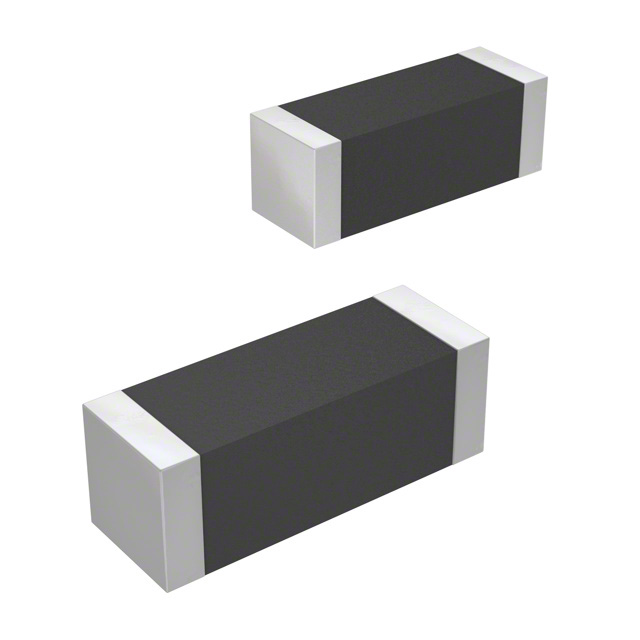

MH4516 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FERRITE BEAD 1 KOHM 1806 1LN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Filter Type | Package / Case | DC Resistance (DCR) (Max) [Max] | Height (Max) [Max] [z] | Height (Max) [z] | Mounting Type | Current Rating (Max) [Max] | Number of Lines | Impedance @ Frequency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -55 C | 125 °C | Power Signal Line | 1806 (4516 Metric) | 150 mOhm | 0.071 in | 1.8 mm | Surface Mount | 1.5 A | 1 | 1 kOhms | 0.063 " | 0.177 in | 1.6 mm | 4.5 mm |
Bourns Inc. | -55 C | 125 °C | Power Signal Line | 1806 (4516 Metric) | 25 mOhm | 0.071 in | 1.8 mm | Surface Mount | 3 A | 1 | 75 Ohms | 0.063 " | 0.177 in | 1.6 mm | 4.5 mm |
