121700A Series
Manufacturer: Belden Inc.
Beta
⌘K

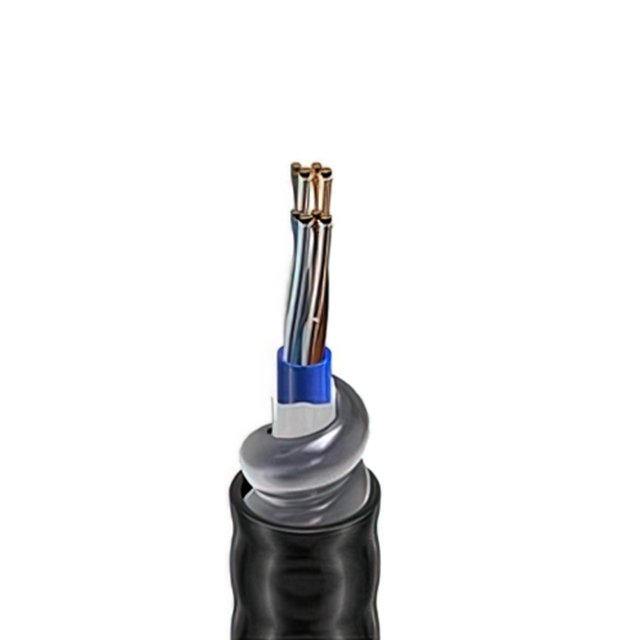

CABLE CAT5E 8CON 24AWG BLK
| Part | Features | Voltage | Conductor Material | Conductor Insulation | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand | Cable Type | Jacket (Insulation) Material | Usage | Number of Conductors | Length | Length | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Oil Resistant Rip Cord UV Resistant | 300 VDC | Copper Bare | Polyolefin | PO | -40 C | 75 ░C | Solid | Multi-Pair Cat5e | Poly-Vinyl Chloride (PVC) | Industrial Network | 8 | 914.4 m | 3000 ' | 24 AWG | 0.553 in | 14.05 mm | 1.143 mm | 0.045 in | Black |
 Belden Inc. | Oil Resistant Rip Cord UV Resistant | 300 VDC | Copper Bare | Polyolefin | PO | -40 C | 75 ░C | Solid | Multi-Pair Cat5e | Poly-Vinyl Chloride (PVC) | Industrial Network | 8 | 24 AWG | 0.553 in | 14.05 mm | 1.143 mm | 0.045 in | Black |
