.070 MULTILOCK Series

Catalog

AUTOMOTIVE CONNECTOR HOUSING, MULTI-LOCK 070 SERIES, RECEPTACLE, 2 POSITIONS

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Number of Rows	Contact Termination	Contact Type	Pitch	Color	Number of Positions	Insulation Material	Mounting Type	Fastening Type	Row Spacing
TE Connectivity AMP Connectors 174460-1	Contacts Not Included	-30 °C	105 °C	Receptacle	1	Crimp	Tab	0.138 in	White	2	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)
TE Connectivity AMP Connectors 174463-6				Plug	1	Crimp	Female Socket	0.138 in	Gray	2		Free Hanging (In-Line)	Latch Lock
TE Connectivity AMP Connectors 176117-6				Plug	2	Crimp	Female Socket		Gray	14		Free Hanging (In-Line)	Latch Lock	0.232 in

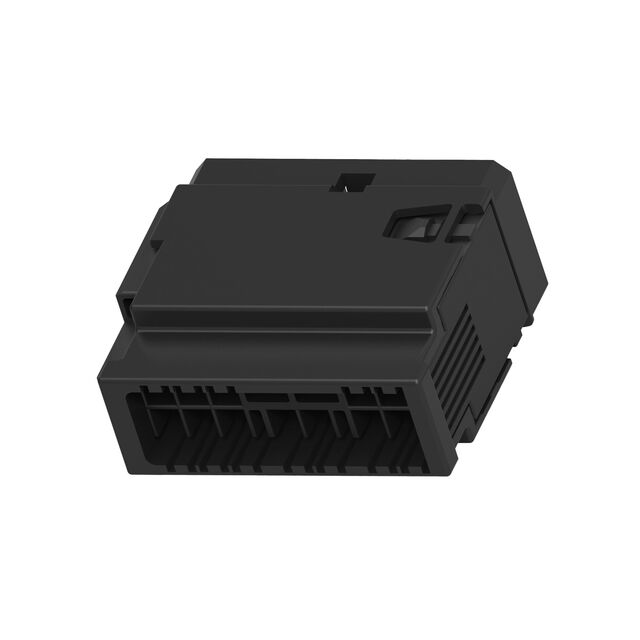

TE Connectivity AMP Connectors 282993-2	Contacts Not Included	-30 °C	105 °C	Receptacle	2	Crimp	Tab		Black	12	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)
TE Connectivity AMP Connectors 174933-1		-30 °C	105 °C	Receptacle	2	Crimp	Tab		White	12	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)		0.232 in
TE Connectivity AMP Connectors 174463-2		-30 °C	105 °C	Plug	1	Crimp	Female Socket	0.138 in	Black	2	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Latch Lock
TE Connectivity AMP Connectors 174922-2		-30 °C	105 °C	Plug	1	Crimp	Female Socket	0.138 in	Black	4	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Latch Holder
