TIL Series

Catalog

ROCKER SWITCHES TILA511SBLFN/ONOFF

Part	Switch Function	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Actuator Marking	Termination Style	Circuit	Mounting Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Electrical Life
Carling Technologies TILA51-1S-BL-FN/ON-OFF	On-Off	15 A	Concave	28 V	ON OFF	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	Black	36.83 mm	21.08 mm	CSA UL VDE	125 V
Carling Technologies TILA51-1L-WH-FN	On-Off	15 A	Concave	28 V	No Marking	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	White	36.83 mm	21.08 mm	CSA UL VDE	125 V
Carling Technologies TILA50-2L-BL-A	On-Off	15 A	Paddle	28 V	No Marking	Solder Lug	SPST	Panel Mount Snap-In	Black	36.83 mm	21.08 mm	CSA UL VDE	125 V
Carling Technologies TILA64-1S-WH-FN-BLK/.125/ON-OFF

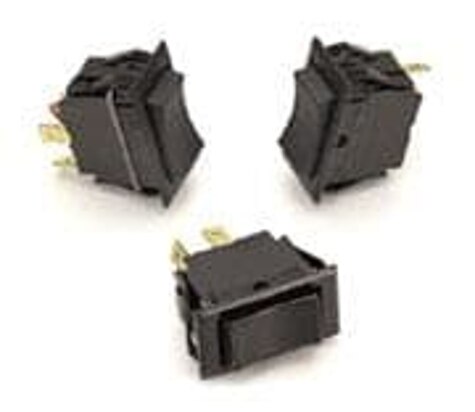

Carling Technologies TILC6M-1L-WH-A	Mom-Off-Mom	6 A	Concave		No Marking	Quick Connect - 0.250" (6.3mm)	SPDT	Panel Mount Snap-In	White	36.83 mm	21.08 mm	CSA UL VDE	125 V
Carling Technologies TILC5E-1L-WH-A	On-Off-Mom	15 A	Concave	28 V	No Marking	Screw Terminal	SPDT	Panel Mount Snap-In	White	36.83 mm	21.08 mm	CSA UL VDE	125 V	85 °C	-40 C
Carling Technologies TILA51-1S-WH-FW
Carling Technologies TILA61-1L-BL-FN	On-Off	6 A	Concave		No Marking	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	Black	36.83 mm	21.08 mm	CSA UL VDE	125 V			50000 Cycles	50000 Cycles
Carling Technologies TILA6B-1C-WH-A	Off-Mom	6 A	Concave		No Marking	Quick Connect - 0.250" (6.3mm)	SPST-NO	Panel Mount Snap-In	White	36.83 mm	21.08 mm	CSA UL VDE	125 V			50000 Cycles	50000 Cycles
Carling Technologies TILC5B-1S-BL-FN	On-Off-Mom	15 A	Concave	28 V	No Marking	Quick Connect - 0.250" (6.3mm)	SPDT	Panel Mount Snap-In	Black	36.83 mm	21.08 mm	CSA UL VDE	125 V
