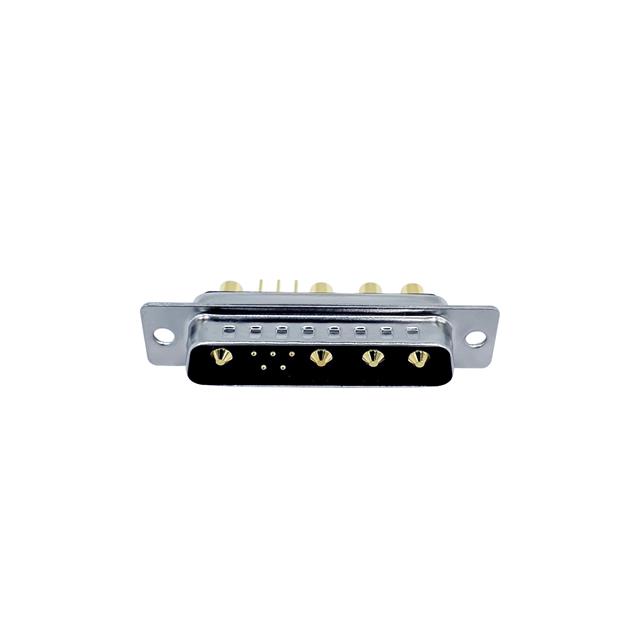

681M9W4 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBO D-SUB CONN, RCPT, DB-9W4, TH ROHS COMPLIANT: YES
| Part | Voltage Rating | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material Flammability Rating | Contact Type | Number of Rows [custom] | Connector Type | Termination | Number of Positions [custom] | Number of Positions [custom] | Contact Finish | Flange Feature | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Current Rating (Amps) | Connector Style | Contact Finish Thickness | Mounting Type | Current Rating (Amps) [Max] | Current Rating (Amps) [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 250 V | Copper Alloy | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Black | UL94 V-0 | Signal and Power | 2 | Receptacle Female Sockets | Solder | 4 | 5 | Gold | Board Side (4-40) | Nickel Plated Steel | DB B - 9W4 | 3 | 5 A 40 A | Combo D-Sub | Flash | Panel Mount Through Hole | |||
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | UL94 V-0 | Signal and Power | 2 | Receptacle Female Sockets | Solder | 4 | 5 | Gold | Housing/Shell (Unthreaded) | Nickel Plated Steel | DB B - 9W4 | 3 | 5 A | Combo D-Sub | Flash | Panel Mount Through Hole | 40 A | 20 A | |||
 NorComp Inc. | 250 V | Copper Alloy | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Black | UL94 V-0 | Signal and Power | 2 | Plug Male Pins | Solder | 4 | 5 | Gold | Board Side (4-40) | Nickel Plated Steel | DB B - 9W4 | 3 | 5 A 40 A | Combo D-Sub | Flash | Panel Mount Through Hole | Board Lock Grounding Indents | ||
 NorComp Inc. | 250 V | Copper Alloy | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Black | UL94 V-0 | Signal and Power | 2 | Receptacle Female Sockets | Solder | 4 | 5 | Gold | Housing/Shell (Unthreaded) | Nickel Plated Steel | DB B - 9W4 | 3 | 5 A 40 A | Combo D-Sub | Flash | Panel Mount Through Hole |
