MF-R055 Series
Manufacturer: Bourns Inc.
Beta
⌘K

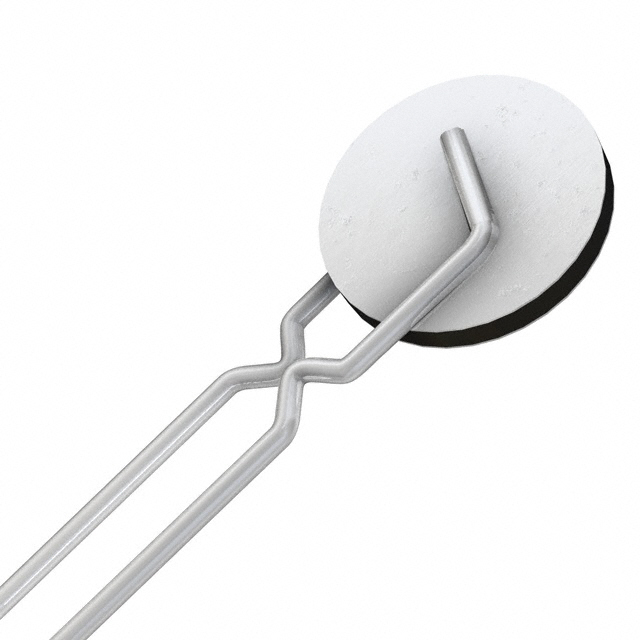

PTC RESET FUSE 90V 550MA RADIAL
| Part | Approval Agency | Voltage - Max [Max] | Time to Trip | Current - Max [Max] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Type | Current - Hold (Ih) (Max) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Resistance - Post Trip (R1) (Max) [Max] | Current - Trip (It) | Lead Spacing | Lead Spacing | Resistance - Initial (Ri) (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cURus TUV | 90 V | 28 s | 10 A | 10.9 mm | 3.6 mm | 0.142 " | 0.429 in | Polymeric | 550 mA | 16.7 mm | 0.657 in | 85 °C | -40 C | Through Hole | Disc Radial | 2 Ohms | 1.1 A | 0.201 in | 5.1 mm | 450 mOhms |
