MU Series

Catalog

FERRITE BEADS 800 OHM 25% HIGH IMPEDANCE

Part	Height (Max) [z]	Height (Max) [z]	Impedance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Number of Lines	Filter Type	Current Rating (Max) [Max]	Package / Case	DC Resistance (DCR) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max) [Max]	Package / Case	Size / Dimension [y]

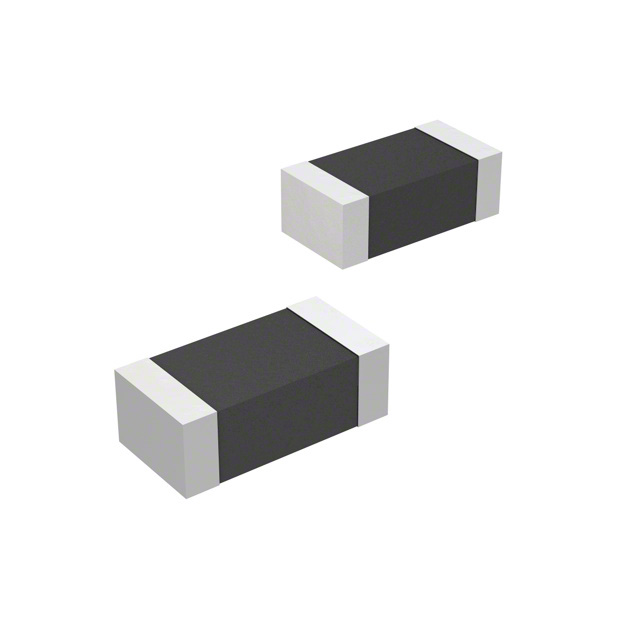

Bourns Inc. MU3261-801Y	0.051 in	1.3 mm	800 Ohms	0.063 "	0.126 "	3.2 mm	1.6 mm	Surface Mount	1	Power Signal Line	300 mA	1206 (3216 Metric)	600 mOhm	-55 C	125 °C
Bourns Inc. MU1608-600Y			60 Ohms	0.031 in	0.063 "	1.6 mm		Surface Mount	1	Power Signal Line	700 mA	0603		-55 C	125 °C	0.039 in	1 mm	200 mOhm	1608 Metric	0.8 mm
Bourns Inc. MU3261-300Y	0.051 in	1.3 mm	30 Ohms	0.063 "	0.126 "	3.2 mm	1.6 mm	Surface Mount	1	Power Signal Line	500 mA	1206 (3216 Metric)		-55 C	125 °C			200 mOhm
Bourns Inc. MU1608-301Y			300 Ohms	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	1	Power Signal Line	150 mA	0603		-55 C	125 °C	0.039 in	1 mm	350 mOhm	1608 Metric	0.8 mm
Bourns Inc. MU2029-471Y		1.1 mm	470 Ohms	0.047 in	0.079 in	2 mm	1.2 mm	Surface Mount	1	Power Signal Line	700 mA	0805		-55 C	125 °C	0.043 in		350 mOhm
