TPS61169 Series
Manufacturer: Texas Instruments
Beta
⌘K
TPS61169 38-V HIGH-CURRENT BOOST WLED DRIVER
| Part | Number of Outputs | Applications | Frequency | Voltage - Supply (Max) | Internal Switch(s) | Type | Package / Case | Mounting Type | Topology | Dimming | Current - Output / Channel | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Features | Supplied Contents | Current - Output / Channel [custom] | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Outputs and Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | Backlight | 1.2 MHz | 5.5 V | DC DC Regulator | 5-TSSOP SC-70-5 SOT-353 | Surface Mount | Step-Up (Boost) | PWM | 1.8 A | SC-70-5 | -40 °C | 125 ¯C | |||||||||

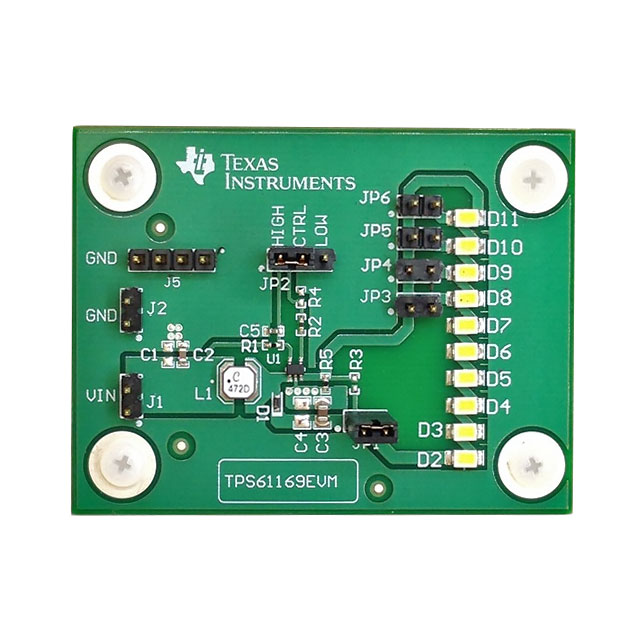

 Texas Instruments | Dimmable | Board(s) | 20 mA | 2.7 V | 5.5 V | Non-Isolated | 1 | TPS61169 |
