OQ10 Series

Catalog

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; OQ; 20A; 300V

Part	Contact Tail Length	Contact Tail Length	Voltage - UL	Insulation Height	Insulation Height	Type	Mounting Type	Current - UL	Positions Per Level	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Termination Style	Material Flammability Rating	Features	Contact Material	Header Orientation	Number of Levels	Housing Material	Color
Amphenol Anytek OQ1055800000G	0.157 in	4 mm	300 V	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	Through Hole	20 A	10	Tin	-40 °C	115 °C	10	0.2 in	5.08 mm	Solder	UL94 V-0	Mating Flange	Copper	Vertical	1	Thermoplastic	Gray
Amphenol Anytek OQ1054000000G	0.157 in	4 mm	300 V	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	Through Hole	20 A	10	Tin	-40 °C	115 °C	10	0.2 in	5.08 mm	Solder	UL94 V-0		Copper	Vertical	1	Thermoplastic	Black
Amphenol Anytek OQ1055810000G	0.138 in	3.5 mm	300 V	0.335 "	8.51 mm	Header Male Pins Shrouded (4 Side)	Through Hole	20 A	10	Tin	-40 °C	115 °C	10	0.2 in	5.08 mm	Solder	UL94 V-0	Mating Flange	Copper	90° Right Angle	1	Thermoplastic	Gray
Amphenol Anytek OQ1055010000G	0.138 in	3.5 mm	300 V	0.335 "	8.51 mm	Header Male Pins Shrouded (4 Side)	Through Hole	20 A	10	Tin	-40 °C	115 °C	10	0.2 in	5.08 mm	Solder	UL94 V-0	Mating Flange	Copper	90° Right Angle	1	Thermoplastic	Black
Amphenol Anytek OQ1055000000G	0.157 in	4 mm	300 V	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	Through Hole	20 A	10	Tin	-40 °C	115 °C	10	0.2 in	5.08 mm	Solder	UL94 V-0	Mating Flange	Copper	Vertical	1	Thermoplastic	Black
Amphenol Anytek OQ1032810000G	0.138 in	3.5 mm	300 V	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	Through Hole	10 A	10	Tin	-40 °C	115 °C	10	0.15 in	3.81 mm	Solder	UL94 V-0		Copper	90° Right Angle	1	Thermoplastic	Gray

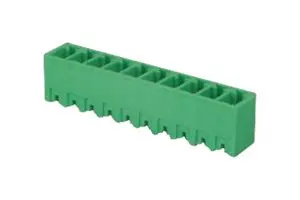

Amphenol Anytek OQ1032500000G	0.138 in	3.5 mm	300 V	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	Through Hole	10 A	10	Tin	-40 °C	115 °C	10	0.15 in	3.81 mm	Solder	UL94 V-0		Copper Alloy	Vertical	1	Thermoplastic Resin	Green
Amphenol Anytek OQ1012010000G	0.138 in	3.5 mm	300 V	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	Through Hole	10 A	10	Tin	-40 °C	115 °C	10	0.138 in	3.5 mm	Solder	UL94 V-0		Copper	90° Right Angle	1	Thermoplastic	Black
Amphenol Anytek OQ1035810000G	0.138 in	3.5 mm	300 V	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	Through Hole	10 A	10	Tin	-40 °C	115 °C	10	0.15 in	3.81 mm	Solder	UL94 V-0	Mating Flange	Copper	90° Right Angle	1	Thermoplastic	Gray
Amphenol Anytek OQ1012800000G	0.138 in	3.5 mm	300 V	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	Through Hole	10 A	10	Tin	-40 °C	115 °C	10	0.138 in	3.5 mm	Solder	UL94 V-0		Copper	Vertical	1	Thermoplastic	Gray
