683M7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K

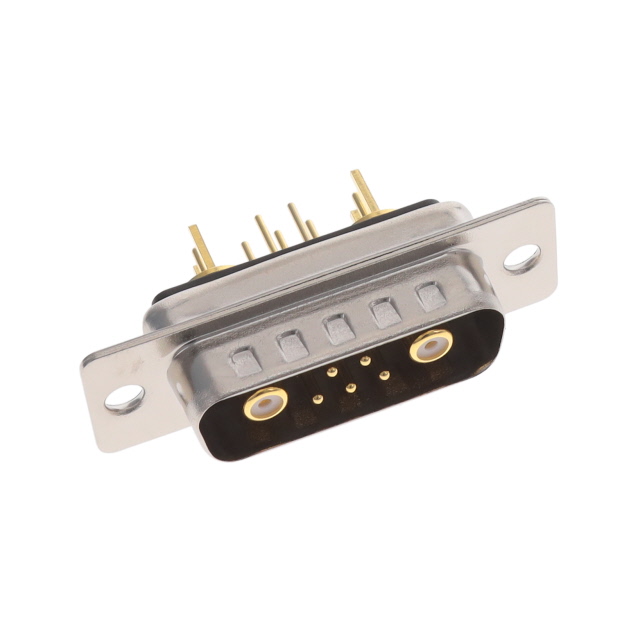

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 683M SERIES, DA-7W2, PLUG, 7 CONTACTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Contact Type | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Features | Number of Rows [custom] | Mounting Type | Termination | Flange Feature | Connector Style | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Black | Polybutylene Terephthalate (PBT) | Brass | Coax Signal | UL94 V-0 | 5 | 2 | Plug Male Pins | A DA | 2 | 7W2 | Gold | Grounding Indents | 2 | Panel Mount Through Hole | Solder | Housing/Shell (Unthreaded) | Combo D-Sub | Flash | Nickel Plated Steel |
 NorComp Inc. | -55 C | 125 °C | Black | Polybutylene Terephthalate (PBT) | Brass | Coax Signal | UL94 V-0 | 5 | 2 | Receptacle Female Sockets | A DA | 2 | 7W2 | Gold | Board Lock | 2 | Panel Mount Through Hole | Solder | Board Side (4-40) | Combo D-Sub | Flash | Nickel Plated Steel |
