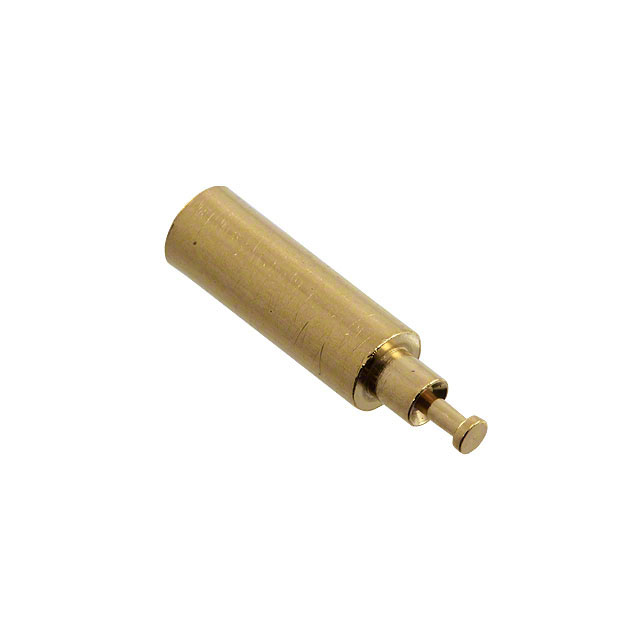

0389-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Board Thickness	Board Thickness
Mill-Max Manufacturing Corp. 0389-2-15-15-08-14-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Gold	16.31 mm	0.642 in	0.25 Ám	10 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper
Mill-Max Manufacturing Corp. 0389-2-15-01-08-27-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Gold	16.31 mm	0.642 in	0.76 Ám	30 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 0389-2-15-80-08-80-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Tin	16.31 mm	0.642 in	5.08 Ám	200 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper
Mill-Max Manufacturing Corp. 0389-2-15-01-08-01-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Tin-Lead	16.31 mm	0.642 in	5.08 Ám	200 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 0389-2-15-15-08-27-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Gold	16.31 mm	0.642 in	0.76 Ám	30 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 0389-2-15-80-08-14-10-0	-55 C	125 °C	Swage	0.094 in	2.39 mm	Gold	16.31 mm	0.642 in	0.25 Ám	10 Áin	4.04 mm	0.159 "	0.385 "	9.78 mm	Turret	0.122 in	3.1 mm	0.102 "	2.13 mm	2.59 mm	0.084 "	Beryllium Copper
