HI9P0201 Series

High Speed, Quad SPST, CMOS Analog Switch

Manufacturer: Renesas Electronics Corporation

Catalog

High Speed, Quad SPST, CMOS Analog Switch

Part	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Multiplexer/Demultiplexer Circuit	Number of Circuits	Switch Circuit	On-State Resistance (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Charge Injection	Crosstalk
Renesas Electronics Corporation HI9P0201-5Z96	Surface Mount	5.5 pF	5.5 pF	185 ns	220 ns	50 nA	15 V	-15 V	16-SOIC	0.154 in	3.9 mm	1:1	4	SPST - NC	80 Ohm	0 °C	75 °C	16-SOIC
Renesas Electronics Corporation HI9P0201HS-5	Surface Mount	10 pF	10 pF	50 ns	50 ns	10 nA	15 V	-15 V	16-SOIC	0.295 in	7.5 mm	1:1	4	SPST - NC	50 Ohm	0 °C	75 °C	16-SOIC	10 pC	-86 dB
Renesas Electronics Corporation HI9P0201HS-9Z	Surface Mount	10 pF	10 pF	50 ns	50 ns	10 nA	15 V	-15 V	16-SOIC	0.295 in	7.5 mm	1:1	4	SPST - NC	50 Ohm	-40 °C	85 °C	16-SOIC	10 pC	-86 dB
Renesas Electronics Corporation HI9P0201HS-9	Surface Mount	10 pF	10 pF	50 ns	50 ns	10 nA	15 V	-15 V	16-SOIC	0.295 in	7.5 mm	1:1	4	SPST - NC	50 Ohm	-40 °C	85 °C	16-SOIC	10 pC	-86 dB
Renesas Electronics Corporation HI9P0201-9	Surface Mount	5.5 pF	5.5 pF	185 ns	220 ns	50 nA	15 V	-15 V	16-SOIC	0.154 in	3.9 mm	1:1	4	SPST - NC	80 Ohm	-40 °C	85 °C	16-SOIC

Catalog

High Speed, Quad SPST, CMOS Analog Switch

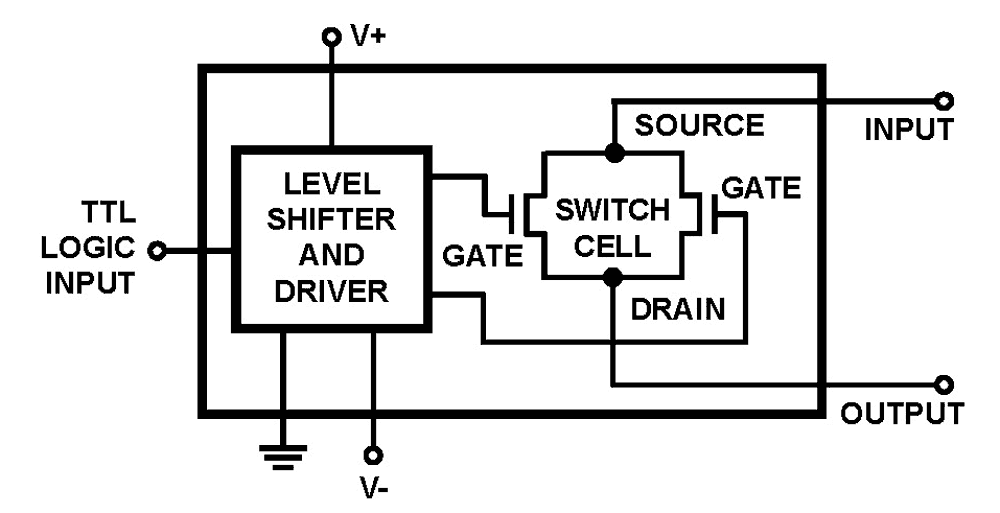

Description

HI-200/HI-201 (dual/quad) are monolithic devices comprising independently selectable SPST switches which feature fast switching speeds (HI-200 240ns, and HI-201 185ns) combined with low power dissipation (15mW at 25°C). Each switch provides low ON resistance operation for input signal voltage up to the supply rails and for signal current up to 80mA. Rugged DI construction eliminates latch-up and substrate SCR failure modes. All devices provide break-before-make switching and are TTL and CMOS compatible for maximum application versatility. HI-200/HI-201 are ideal components for use in high frequency analog switching. Typical applications include signal path switching, sample and hold circuit, digital filters, and operational amplifier gain switching networks.
