AS5600 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
SENSOR ANGLE 360DEG SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | For Measuring | Termination Style | Actuator Type | Mounting Type | Technology | Output Signal | Package / Case | Package / Case | Package / Case | Output | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Voltage - Supply | Supplied Contents | Utilized IC / Part | Sensor Type | Interface | Contents | Sensing Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 125 °C | -40 C | 8-SOIC | Angle | Gull Wing | External Magnet Not Included | Surface Mount | Hall Effect | Clockwise Increase | 0.154 in | 8-SOIC | 3.9 mm | Analog Voltage | 360 ° | 0 ° | 3.3 V 5 VDC | ||||||

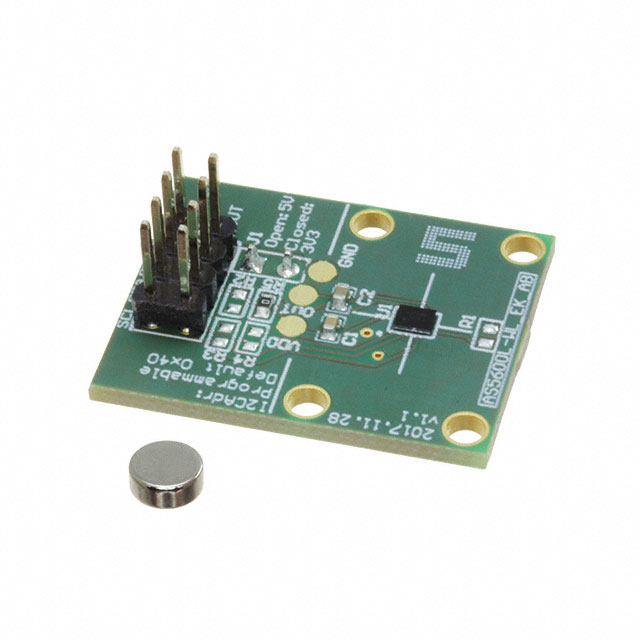

 ams-OSRAM USA INC. | 3.3 V 5 VDC | Accessories Board(s) | AS5600L | Magnetic Rotary Position | I2C Serial | Accessories Board(s) | ||||||||||||||||
ams-OSRAM USA INC. | 125 °C | -40 C | 8-SOIC | Angle | Gull Wing | External Magnet Not Included | Surface Mount | Hall Effect | Clockwise Increase | 0.154 in | 8-SOIC | 3.9 mm | Analog Voltage | 360 ° | 0 ° | 3.3 V 5 VDC | ||||||
 ams-OSRAM USA INC. | 3.3 V 5 VDC | Accessories Board(s) | AS5600 | Magnetic Rotary Position | I2C | Accessories Board(s) | 360 ° | |||||||||||||||
 ams-OSRAM USA INC. | 3.3 V 5 VDC | Accessories Board(s) | AS5600 | Magnetic Rotary Position | I2C | Accessories Board(s) | 360 ° |
