RRA22H3B Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Mechanical Life | Electrical Life | Actuator Type | Actuator Marking | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Voltage Rating - AC | Circuit | Switch Function | Color - Actuator/Cap | Current Rating (Amps) | Mounting Type | Illumination Voltage (Nominal) | Termination Style | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | Round - Illuminated | No Marking | Neon | Green | 125 V | SPST | On-Off | Green | 10 A | Panel Mount Snap-In | 125 VAC | Quick Connect | |

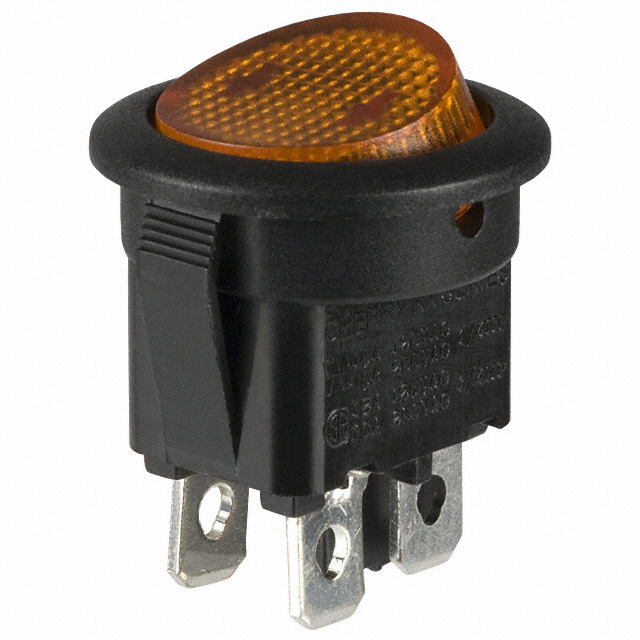

 ZF Electronics | 100000 Cycles | 6000 Cycles | Round - Illuminated | No Marking | 125 V | SPST | On-Off | Amber | 10 A | Panel Mount Snap-In | 125 VAC | Quick Connect | Neon Amber | ||

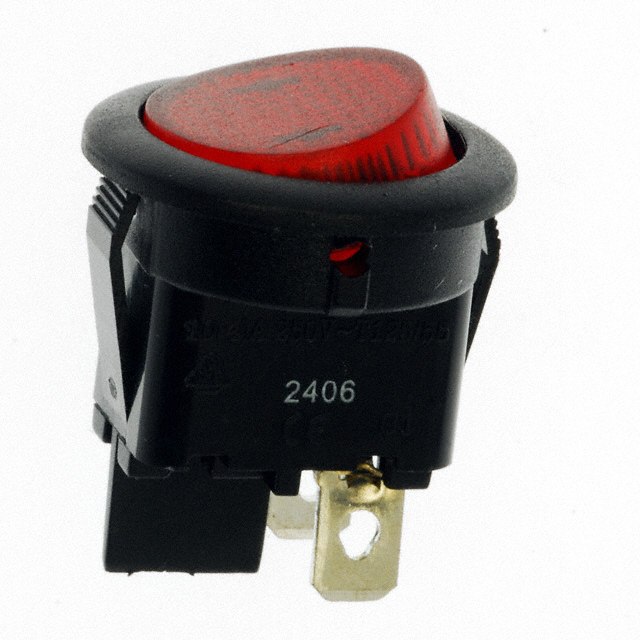

 ZF Electronics | 100000 Cycles | 6000 Cycles | Round - Illuminated | No Marking | 125 V | SPST | On-Off | Red | 10 A | Panel Mount Snap-In | 125 VAC | Quick Connect | Neon Red | ||

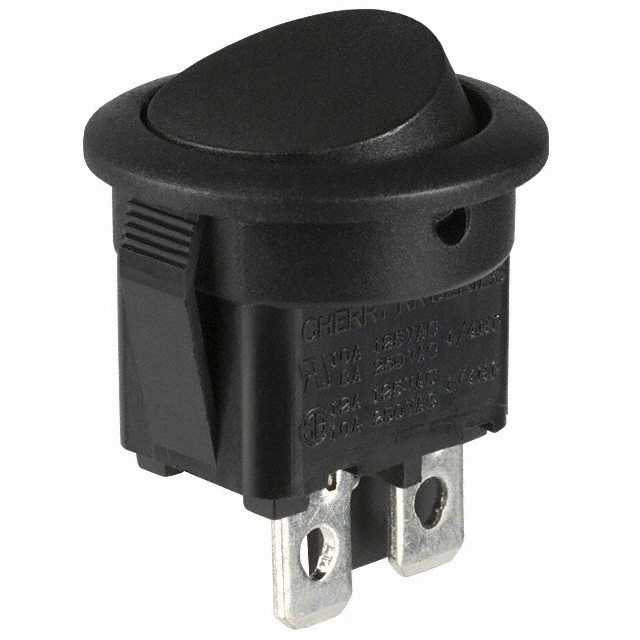

 ZF Electronics | 100000 Cycles | 6000 Cycles | Round | No Marking | 125 V | SPST | On-Off | Black | 10 A | Panel Mount Snap-In | Quick Connect | ||||

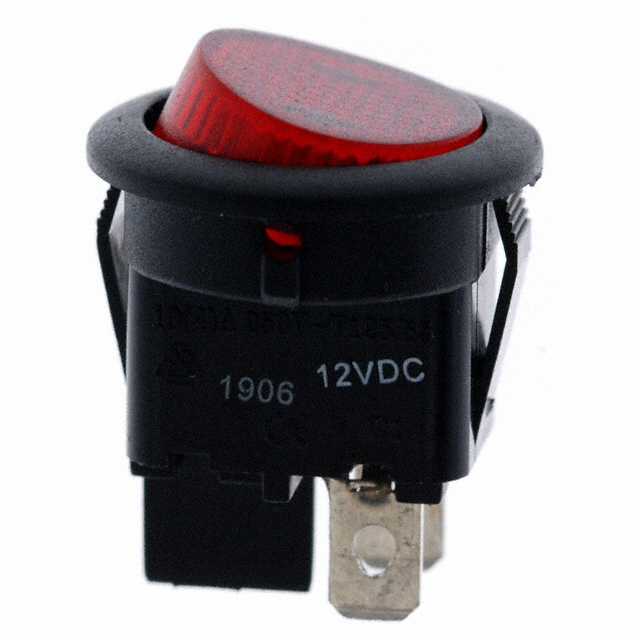

 ZF Electronics | 100000 Cycles | 6000 Cycles | Round - Illuminated | No Marking | 125 V | SPST | On-Off | Red | 10 A | Panel Mount Snap-In | 12 VDC | Quick Connect | Incandescent Red |
