EX-19 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SENSOR THROUGH-BEAM 1M NPN

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Response Time	Cable Length	Cable Length	Light Source	Connection Method	Ingress Protection

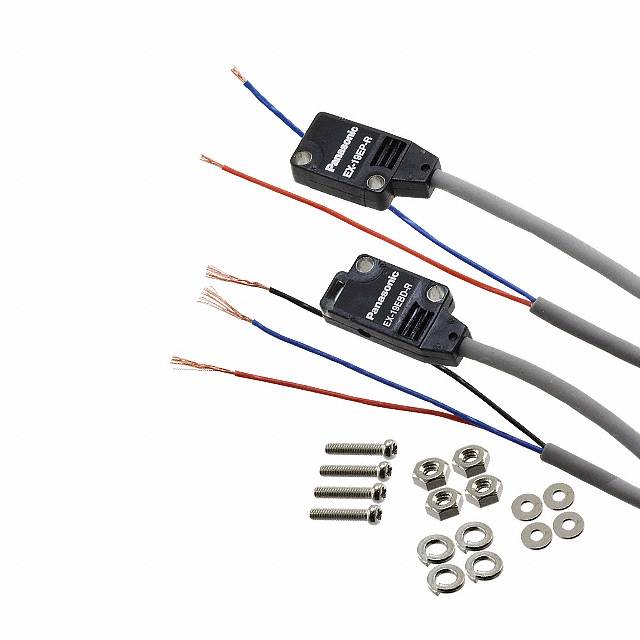

Panasonic Industrial Automation Sales EX-19EB-R	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Dark-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

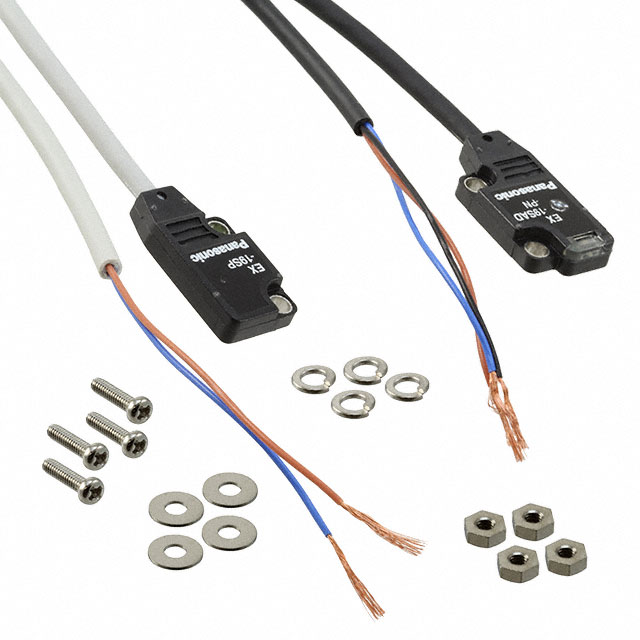

Panasonic Industrial Automation Sales EX-19SA-PN	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	PNP - Open Collector/Light-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

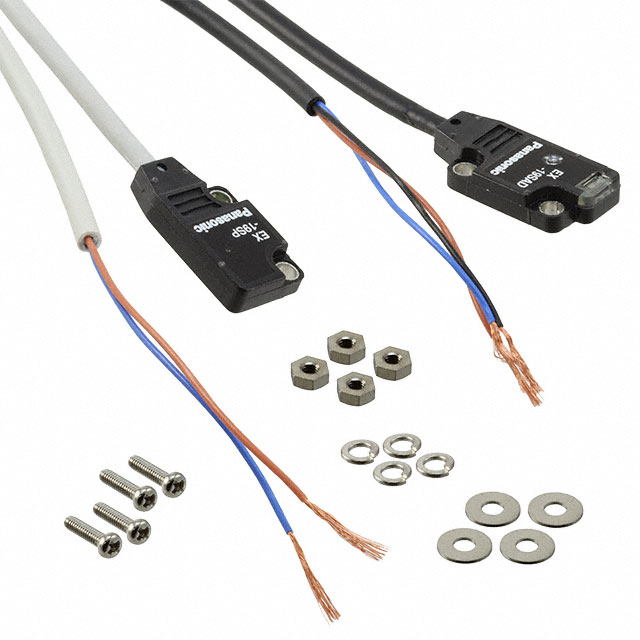

Panasonic Industrial Automation Sales EX-19SA	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Light-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67
Panasonic Industrial Automation Sales EX-19B-C5	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Dark-ON	500 µs	196.85 in	5 m	Red LED	Cable	IP67

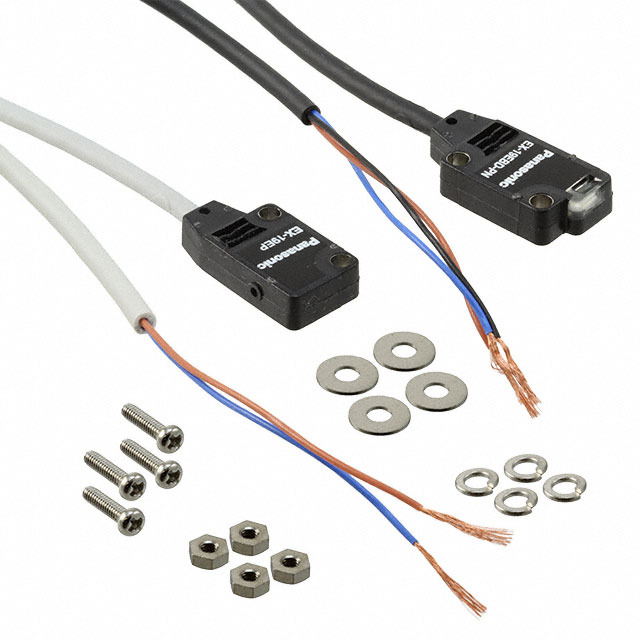

Panasonic Industrial Automation Sales EX-19EB-PN	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	PNP - Open Collector/Dark-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

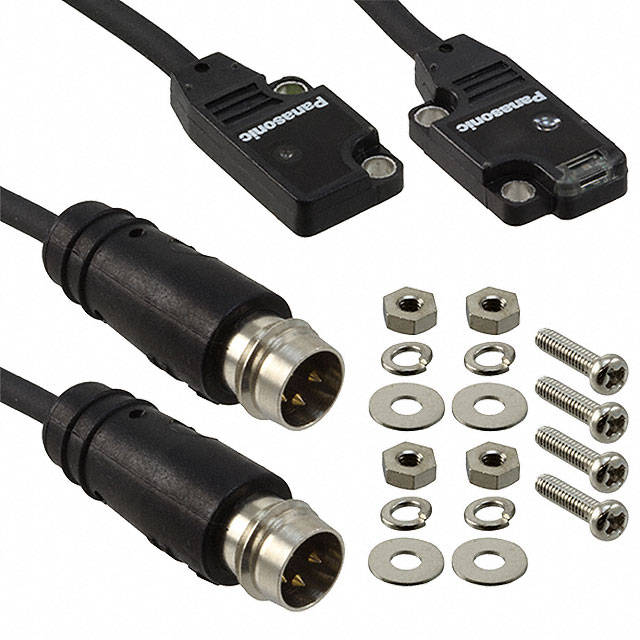

Panasonic Industrial Automation Sales EX-19B-PN-CN03-M8	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	PNP - Open Collector/Dark-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

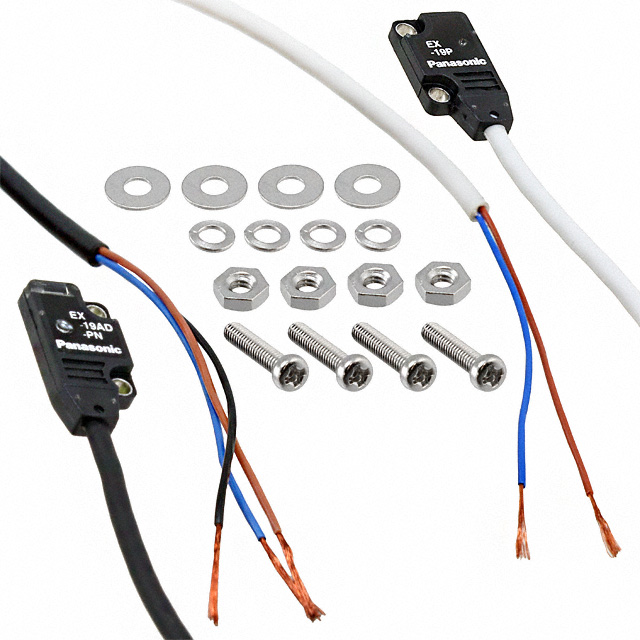

Panasonic Industrial Automation Sales EX-19A-PN	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	PNP - Open Collector/Light-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

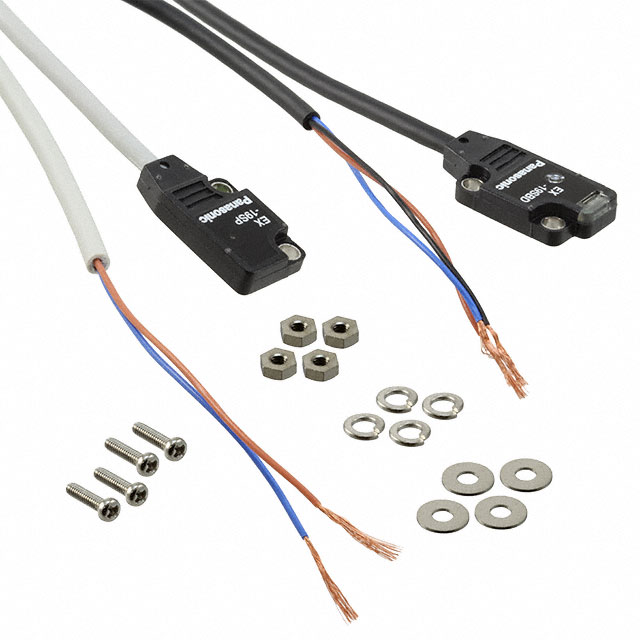

Panasonic Industrial Automation Sales EX-19SB	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Dark-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67

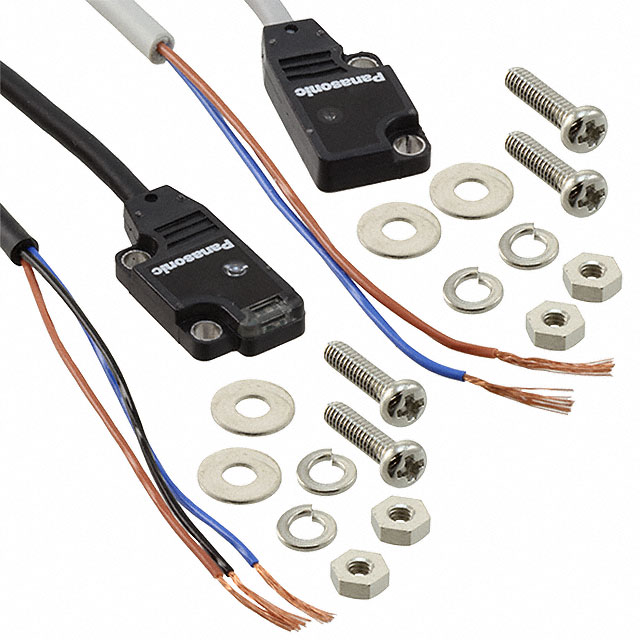

Panasonic Industrial Automation Sales EX-19A	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Light-ON	500 µs	78.74 in	2 m	Red LED	Cable	IP67
Panasonic Industrial Automation Sales EX-19B-CN03-M8	12 V	24 V	Through-Beam	39.37 in	1 m	55 °C	-25 °C	NPN - Open Collector/Dark-ON	500 µs	118.1 in	3000 mm	Red LED	Cable	IP67
