RT2810 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

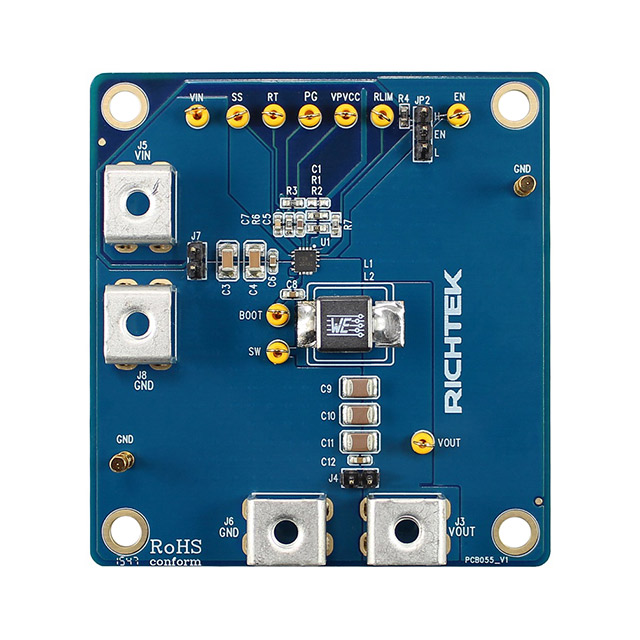

EVAL MODULE FOR RT2810BHGQUF
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Current - Output | Voltage - Output | Contents | Frequency - Switching | Main Purpose | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Output Type | Voltage - Input (Max) [Max] | Function | Mounting Type | Supplier Device Package | Frequency - Switching [Min] | Frequency - Switching [Max] | Package / Case | Topology | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Synchronous Rectifier | Number of Outputs | Voltage - Output (Min/Fixed) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 10 A | 1.4 V | Board(s) | 500 kHz | DC/DC Step Down | Buck | 18 V | 4.5 V | |||||||||||||||||

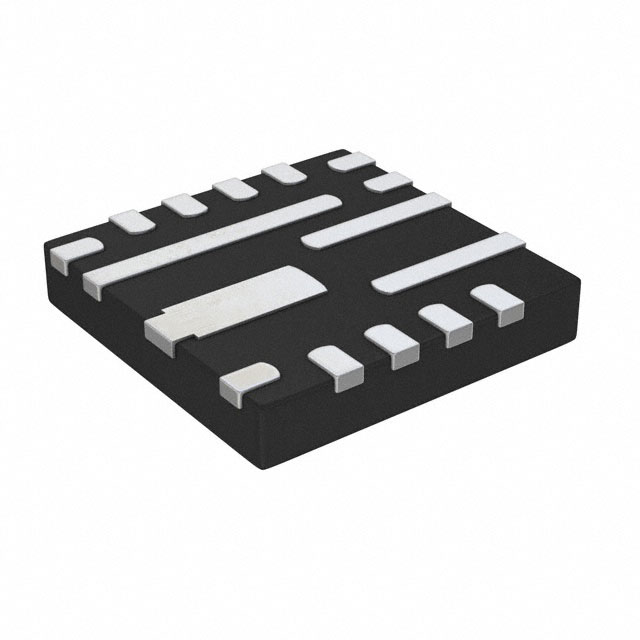

 Richtek USA Inc. | 10 A | Adjustable | 18 V | Step-Down | Surface Mount | 16-UQFN (3x3) | 300 kHz | 700 kHz | 16-UFQFN | Buck | Positive | -40 C | 125 °C | 4.5 V | 8 V | 1 | 0.7 V |
