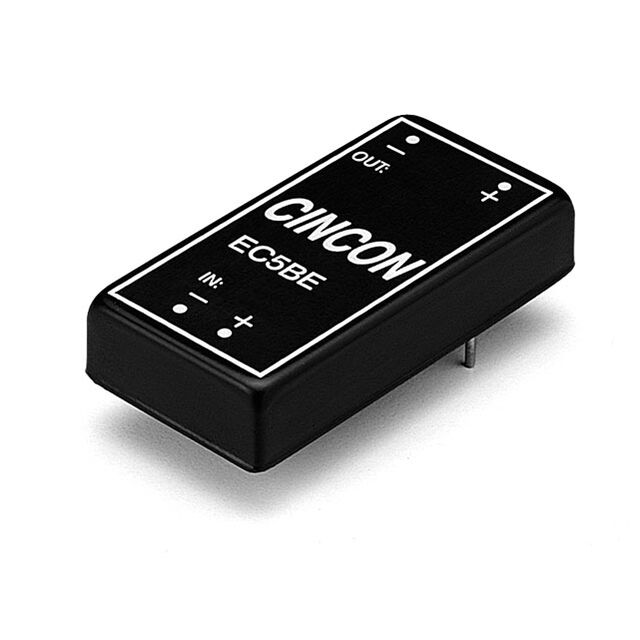

EC5BE Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Type	Size / Dimension	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Features	Power (Watts)	Standard Number	Applications	Current - Output (Max)	Voltage - Output 2

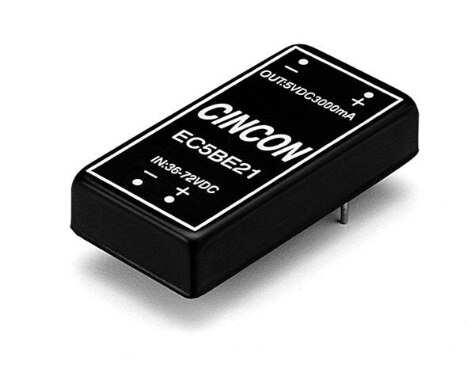

Cincon Electronics Co. LTD EC5BE22A	-25 °C	100 °C	1	CE cURus	500 V	1.25 A	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	12 V	83 %	6-DIP Module	72 V	Through Hole	SCP	15 W	60950-1	ITE (Commercial)
Cincon Electronics Co. LTD EC5BE26A	-25 °C	100 °C	2	CE cURus	500 V		Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	5 V		6-DIP Module	72 V	Through Hole	SCP	15 W	60950-1	ITE (Commercial)	1.5 A	-5 V
