325-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 19POS 0.100

Part	Termination Rows	Material - Insulation	Number of Rows	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Card Type	Contact Material	Number of Positions	Gender	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Color	Read Out	Contact Finish	Card Thickness	Card Thickness	Flange Feature [diameter]	Flange Feature [diameter]

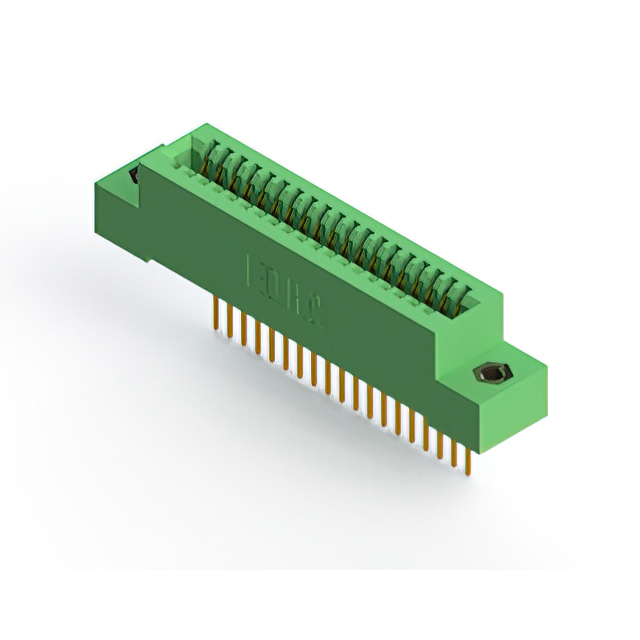

EDAC Inc. 325-019-540-107	1	Diallyl Phthalate (DAP)	1	Cantilever	Wire Wrap	-65 ░C	125 °C	19	Non Specified - Single Edge	Copper Alloy	19	Female	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Green	Single	Gold	3.18 mm	0.125 in
EDAC Inc. 325-019-540-101	1	Diallyl Phthalate (DAP)	1	Cantilever	Wire Wrap	-65 ░C	125 °C	19	Non Specified - Single Edge	Copper Alloy	19	Female	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin		Green	Single	Gold	3.18 mm	0.125 in
EDAC Inc. 325-019-500-108	1	Diallyl Phthalate (DAP)	1	Cantilever	Solder Eyelet(s)	-65 ░C	125 °C	19	Non Specified - Single Edge	Copper Alloy	19	Female	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Green	Single	Gold	3.18 mm	0.125 in
EDAC Inc. 325-019-500-109	1	Diallyl Phthalate (DAP)	1	Cantilever	Solder Eyelet(s)	-65 ░C	125 °C	19	Non Specified - Single Edge	Copper Alloy	19	Female	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Green	Single	Gold	3.18 mm	0.125 in	0.16 "	4.06 mm

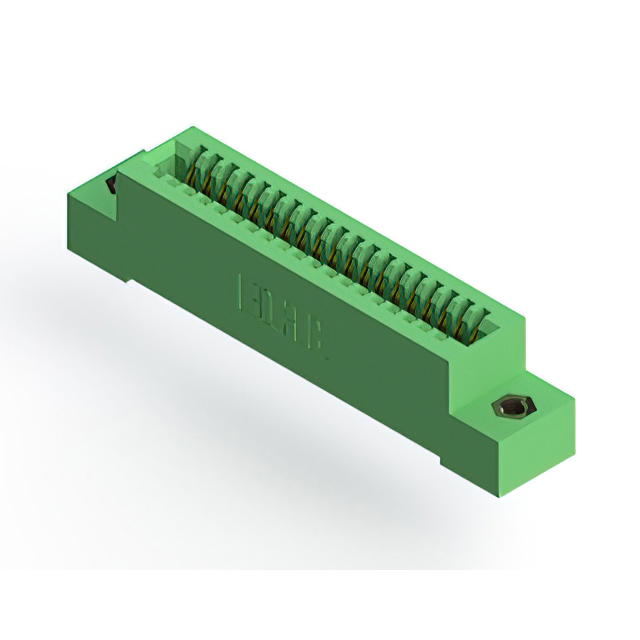

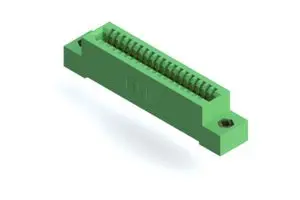

EDAC Inc. 325-019-500-107	1	Diallyl Phthalate (DAP)	1	Cantilever	Solder Eyelet(s)	-65 ░C	125 °C	19	Non Specified - Single Edge	Copper Alloy	19	Female	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Green	Single	Gold	3.18 mm	0.125 in
