HLW30S Series

Catalog

CONN FFC FPC VERT 30POS 1MM PCB

Part	Housing Color	Mating Cycles	Flat Flex Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Voltage Rating	Termination	Pitch	Pitch	Material Flammability Rating	Housing Material	Contact Material	FFC, FCB Thickness	Cable End Type

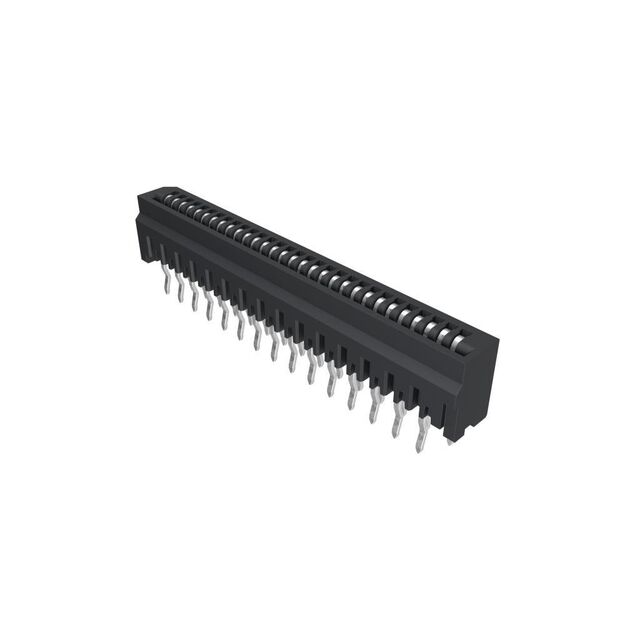

Amphenol ICC (FCI) HLW30S-2C7LF	Black	30	FFC FPC	30	5.9 mm	0.232 "	Contacts Vertical - 1 Sided	-55 C	85 °C	Tin	Through Hole	100 V	Kinked Pin	1 mm	0.039 in	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	0.33 mm
Amphenol ICC (FCI) HLW30S-2A7HLF	Black	30	FFC FPC	30	5.9 mm	0.232 "	Contacts Vertical - 1 Sided	-55 C	85 °C	Tin	Through Hole	100 V	Kinked Pin	1 mm	0.039 in		Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	0.3 mm	Straight or Tapered

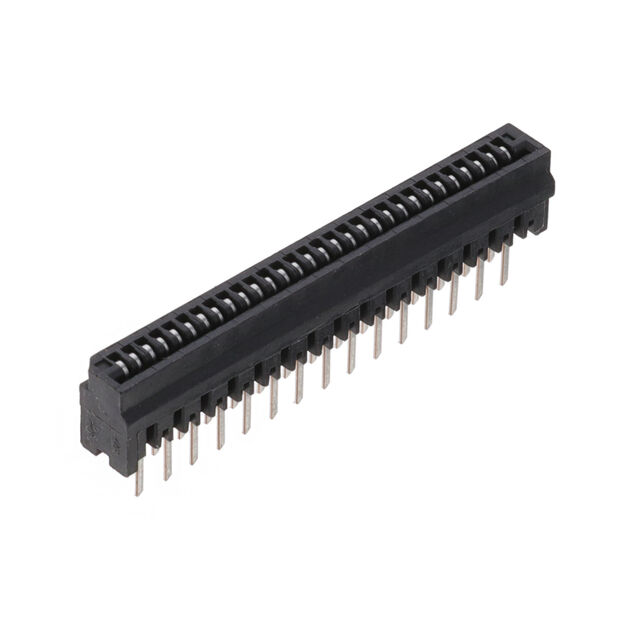

Amphenol ICC (FCI) HLW30S-2A7LF	Black	30	FFC FPC	30	5.9 mm	0.232 "	Contacts Vertical - 1 Sided	-55 C	85 °C	Tin	Through Hole	100 V	Solder	1 mm	0.039 in	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	0.33 mm
