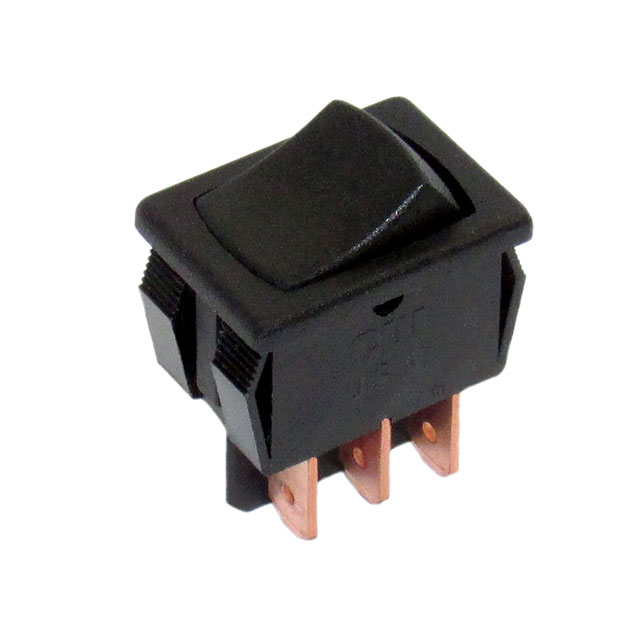

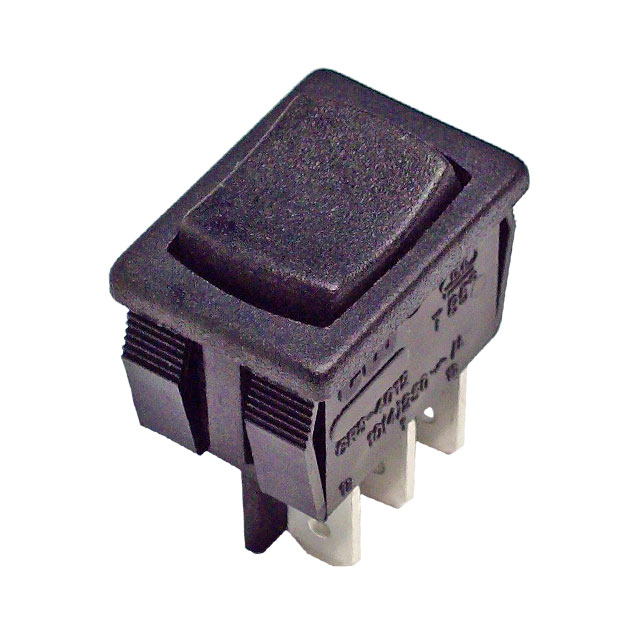

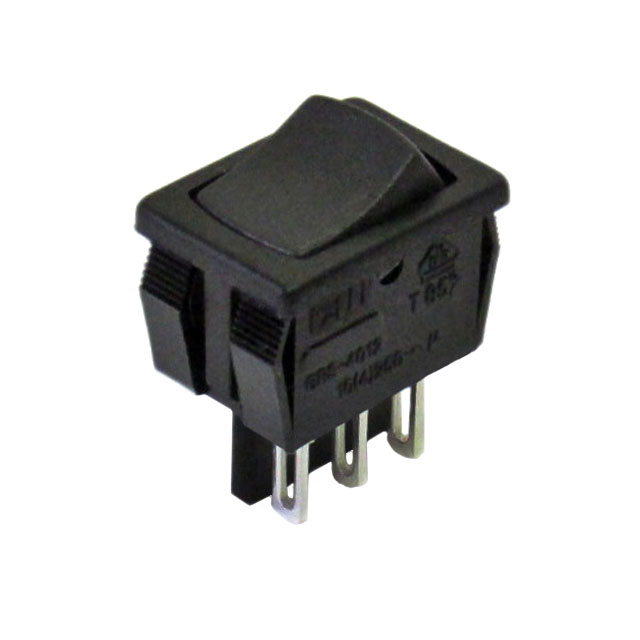

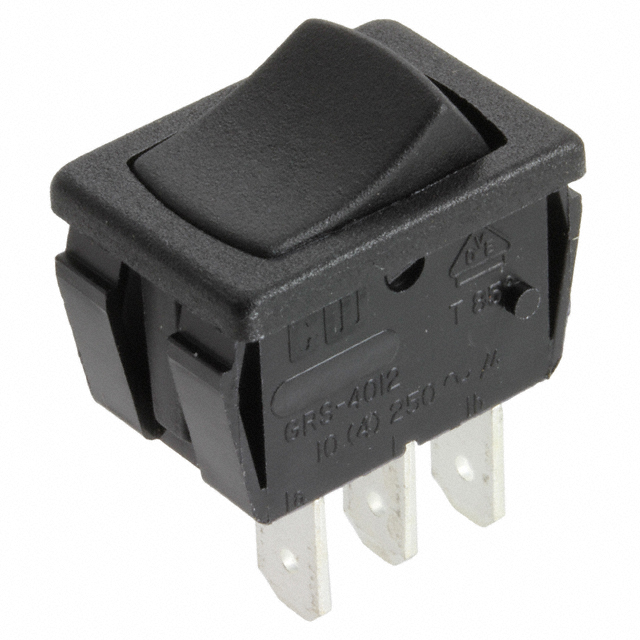

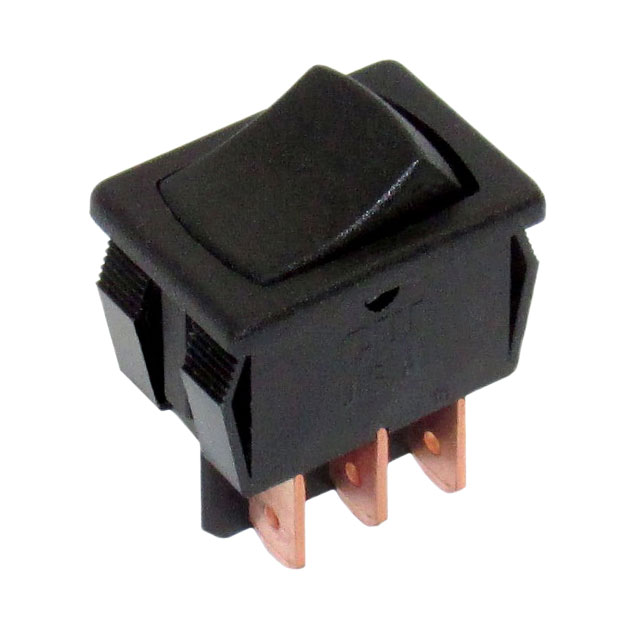

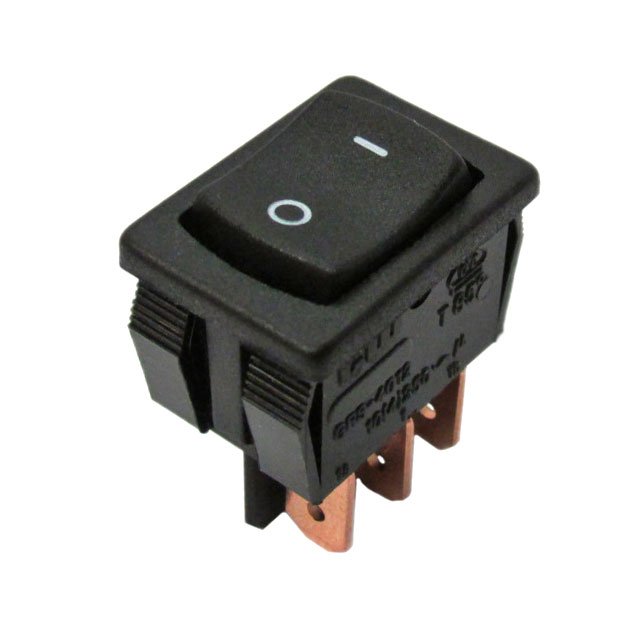

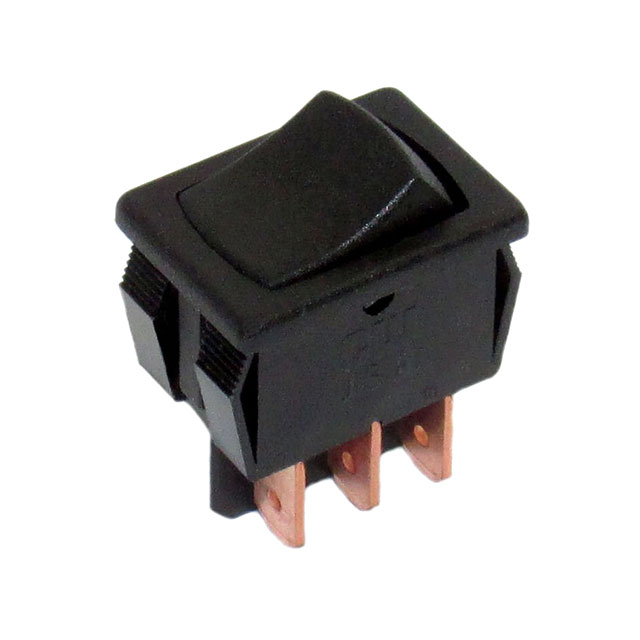

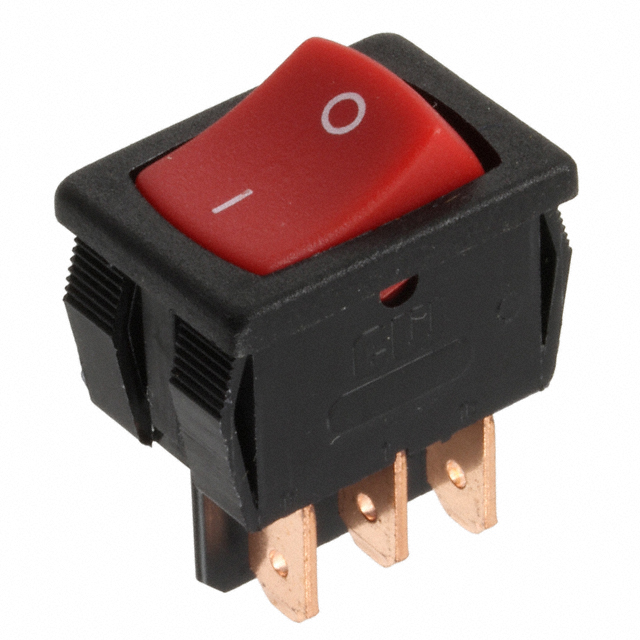

GRS-4012 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Actuator Marking | Voltage Rating - AC | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Circuit | Mounting Type | Current Rating (Amps) | Features | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-Mom | O I | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 8 A | Terminal Barriers | Black |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 8 A | Black | |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 13 A | Terminal Barriers | Blue |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect - 0.110" (2.8mm) | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 13 A | Terminal Barriers | Black |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 16 A | Terminal Barriers | Black |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | Bump | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 16 A | Polarized | Brown |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 16 A | Polarized | Black |
CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | Bump | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 16 A | Polarized | Bisque |
 CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-Mom | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 13 A | Terminal Barriers | Black |
CW Industries | 25000 Steps | 25000 Steps | 12.9 mm | 19.2 mm | On-On | No Marking | 125 V | Quick Connect | -20 ░C | 105 ░C | Concave (Curved) | SPDT | Panel Mount Snap-In | 16 A | Terminal Barriers | Brown |
