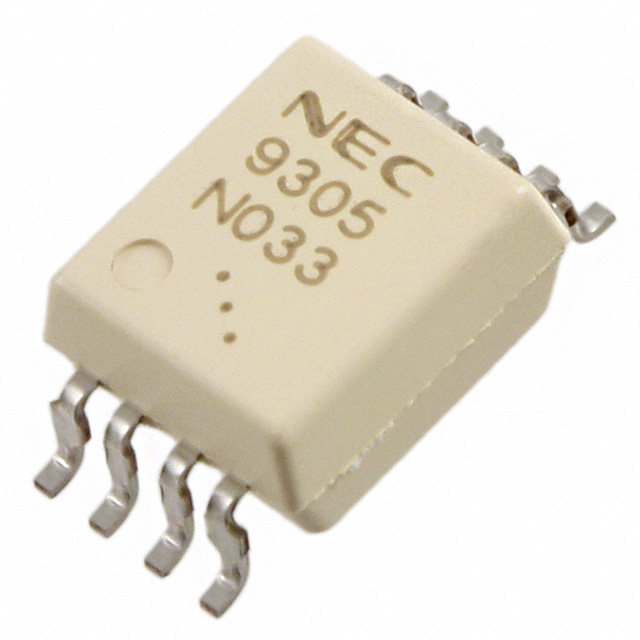

PS9305L Series

Catalog

OPTOISO 5KV 1CH GATE DVR 8SDIP

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Pulse Width Distortion (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Mounting Type	Number of Channels [custom]	Technology	Package / Case	Package / Case
Renesas Electronics Corporation PS9305L-AX	2 A	2 A	8-SDIP Gull Wing	15 V	30 V	CSA SEMKO UL	100 ns	-40 C	110 °C	1.56 V	250 ns	250 ns	50 ns	50 ns	25 mA	25 kV/µs	2.5 A	Surface Mount	1	Optical Coupling	0.268 in 6.81 mm	8-SOIC
Renesas Electronics Corporation PS9305L-E3-AX	2 A	2 A	8-SDIP Gull Wing	15 V	30 V	CSA SEMKO UL	100 ns	-40 C	110 °C	1.56 V	250 ns	250 ns	50 ns	50 ns	25 mA	25 kV/µs	2.5 A	Surface Mount	1	Optical Coupling	0.268 in 6.81 mm	8-SOIC
Renesas Electronics Corporation PS9305L-E3-AX	2 A	2 A	8-SDIP Gull Wing	15 V	30 V	CSA SEMKO UL	100 ns	-40 C	110 °C	1.56 V	250 ns	250 ns	50 ns	50 ns	25 mA	25 kV/µs	2.5 A	Surface Mount	1	Optical Coupling	0.268 in 6.81 mm	8-SOIC
