325321 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 13CIRC 0.325"
| Part | Material Flammability Rating | Mounting Type | Material - Insulation | Operating Temperature | Current Rating (Amps) | Top Termination | Number of Wire Entries | Voltage Rating | Number of Circuits | Barrier Type | Number of Rows | Terminal Block Type | Pitch | Pitch | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 13 | 300 VDC | 13 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||
Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 17 | 300 VDC | 17 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

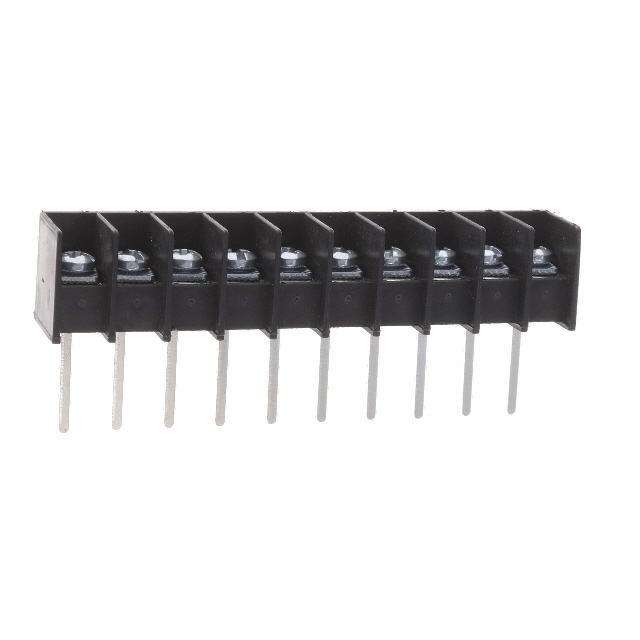

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 10 | 300 VDC | 10 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

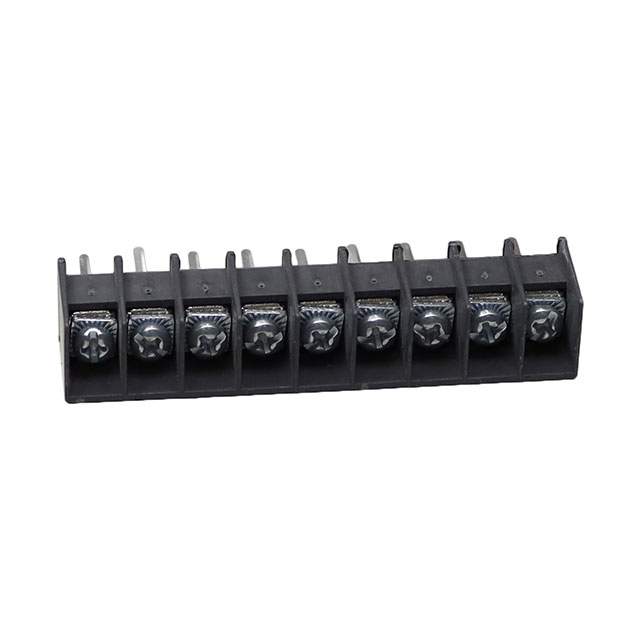

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 9 | 300 VDC | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | 9 | ||

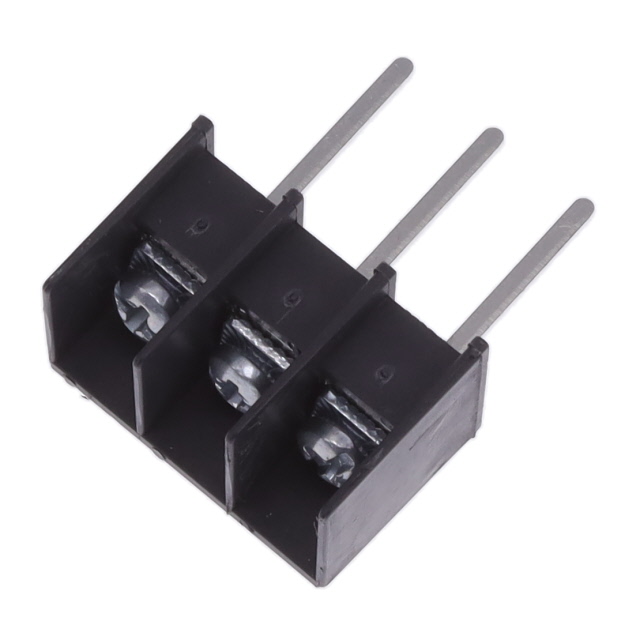

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 3 | 300 VDC | 3 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

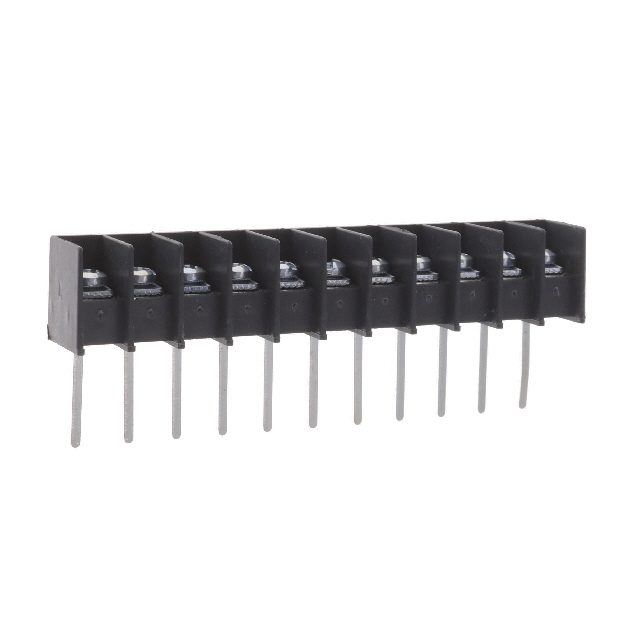

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 11 | 300 VDC | 11 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

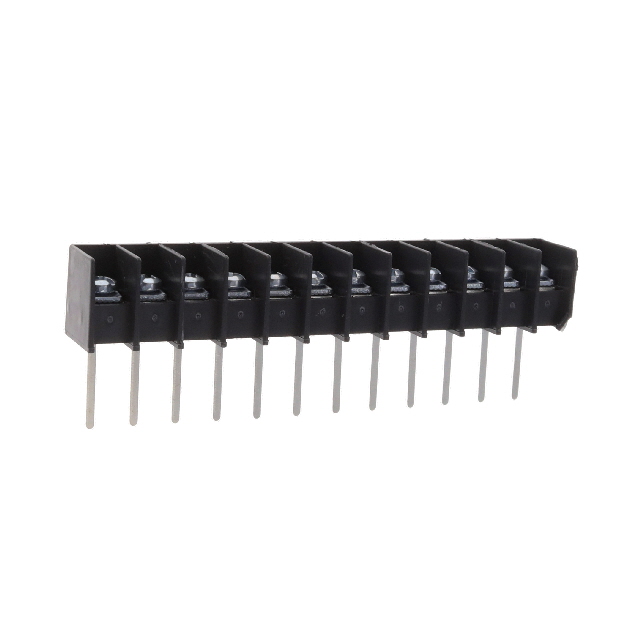

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 12 | 300 VDC | 12 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

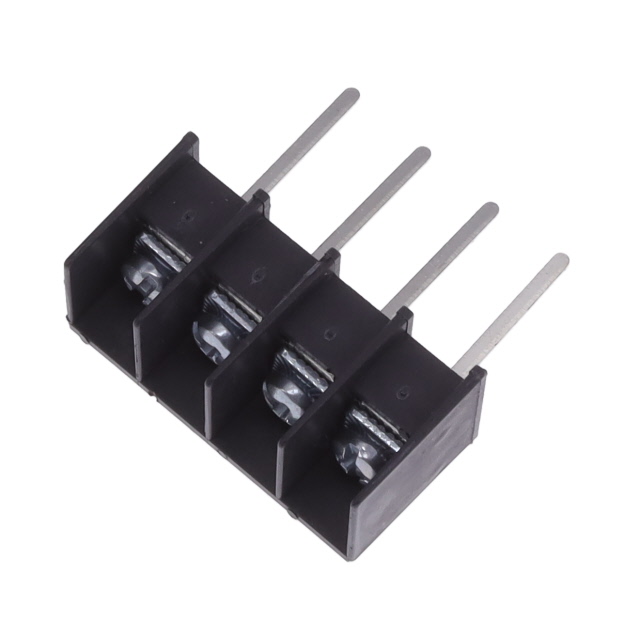

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 4 | 300 VDC | 4 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

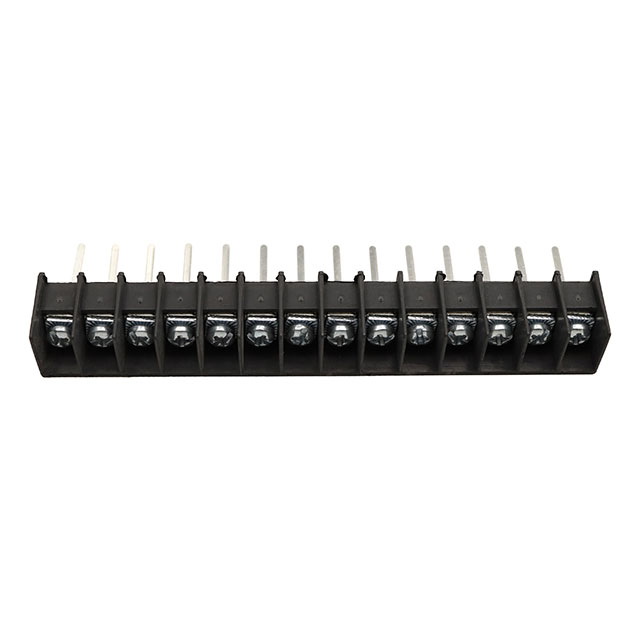

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 14 | 300 VDC | 14 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | ||

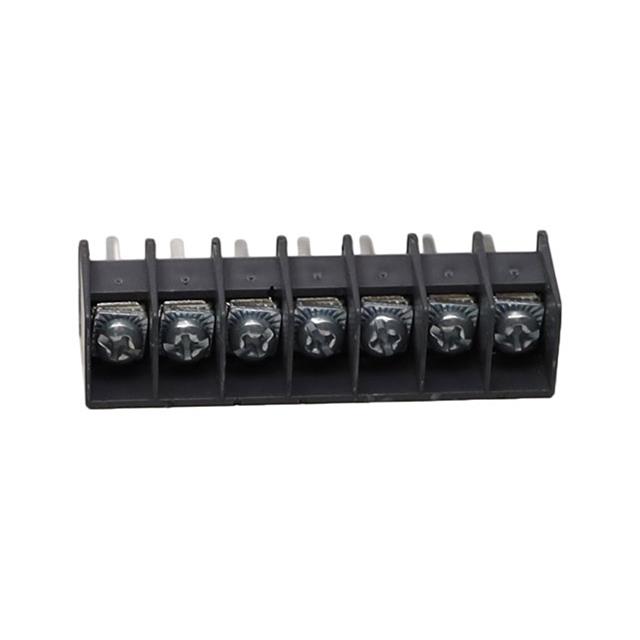

 Curtis Industries | UL94 V-0 | Through Hole | Polypropylene (PP) | 105 C | 15 A | Screws | 300 VDC | 7 | 3 Wall (Tri) | 1 | Barrier Block | 0.325 in | 8.26 mm | Wire Wrap | 14 AWG | 22 AWG | 7 |
