DLCBS7 Series
Manufacturer: Essentra Components
Beta
⌘K

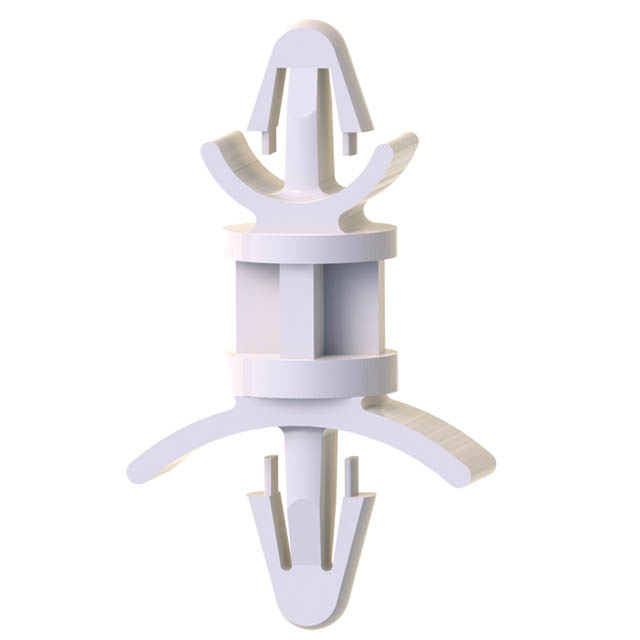

BRD SPT SNAP LOCK NYLON 5/16"
| Part | Features | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Length - Overall [x] | Length - Overall [x] | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Mounting Type | Between Board Height | Between Board Height | Between Board Height | Material | Holding Type | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Hole Diameter | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 23.5 mm | 0.925 in | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.313 in | 0.3125 in | 7.95 mm | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | ||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.5 in | 0.5 in | 12.7 mm | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | 28.5 mm | 1.122 in | ||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.75 " | 0.75 " | 19.05 mm | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | 34.9 mm | 1.374 in | ||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.563 in | 9 " | 14.3 mm | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | 29.6 mm | 1.165 " | ||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.188 in | 0.1875 in | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | 20.4 mm | 0.803 in | |||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 25.1 mm | 0.988 in | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.375 in | 0.375 " | 9.53 mm | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in | ||
Essentra Components | Winged | 0.062 " | 0.0625 " | 1.57 mm | 22 mm | 0.866 in | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 6.35 mm | 0.25 in | Nylon | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 3.96 mm | 0.15625 in | 0.156 in |
