5060/30C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

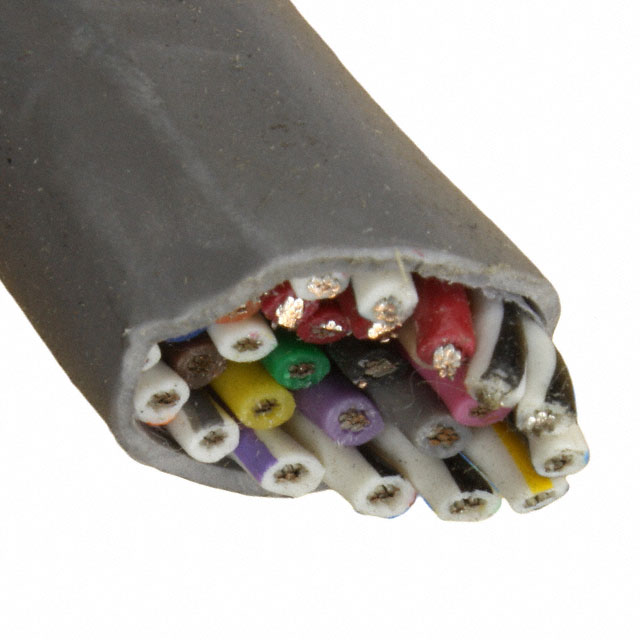

CBL 30COND 20AWG SLT 1000=1000'
| Part | Jacket Color | Ratings | Wire Gauge | Jacket (Insulation) Material | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Conductor Material | Number of Conductors | Conductor Insulation | Usage | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | ISO 10993 UL Style 2464 | 20 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | -35 °C | 105 ░C | Biological Compatibility Rip Cord | Copper Tinned | 30 | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | 28 AWG | 7 | 0.813 mm | 0.032 in | 13.13 mm | 0.517 in |
