BEA87 Series
Manufacturer: TE Intercontec
Beta
⌘K

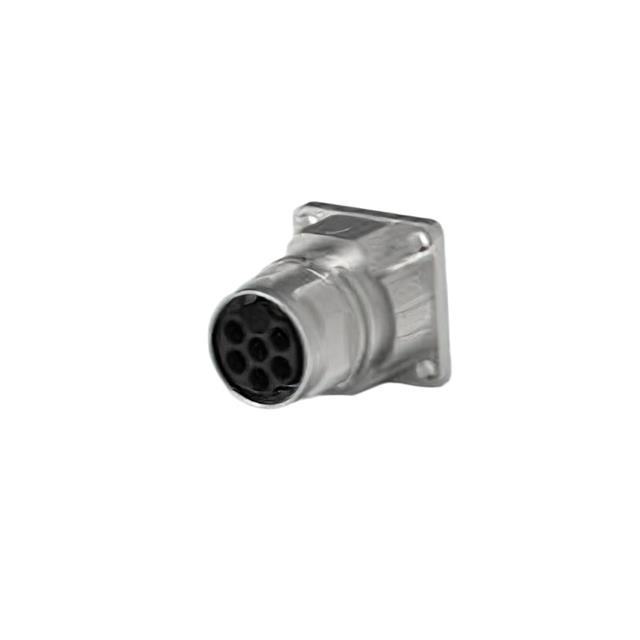

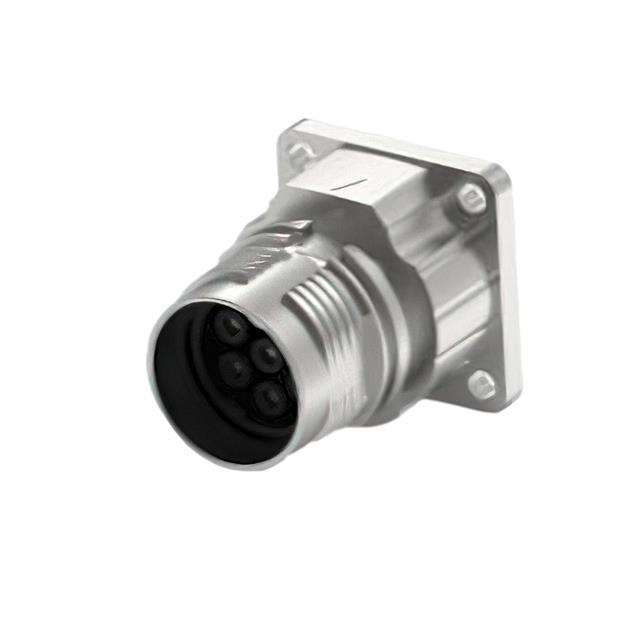

CONN RCPT HSG MALE 7POS PNL MNT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Contact Shape | Insert Material | Note | Mounting Type | Shell Size - Insert | Shell Finish | Type | Housing Color | Mounting Feature | Ingress Protection | Connector Type | Material Flammability Rating | Number of Positions | Shielding | Orientation | Fastening Type | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | -20 ░C | 130 °C | 1 Connector 1 O-Ring | Circular | Polybutylene Terephthalate (PBT) | Contacts Not Included | Panel Mount | M17-7 | Nickel | For Male Pins | Silver | Flange | IP66 IP67 | Receptacle Housing | UL94 V-0 | 7 | Unshielded | Keyed | Push-Twist | Zinc Die Cast |
 TE Intercontec | -20 ░C | 130 °C | 1 Connector 1 O-Ring | Circular | Polybutylene Terephthalate (PBT) | Contacts Not Included | Panel Mount | M17-7 | Nickel | For Male Pins | Silver | Flange | IP66 IP67 | Receptacle Housing | UL94 V-0 | 7 | Unshielded | Keyed | Push-Twist | Zinc Die Cast |
