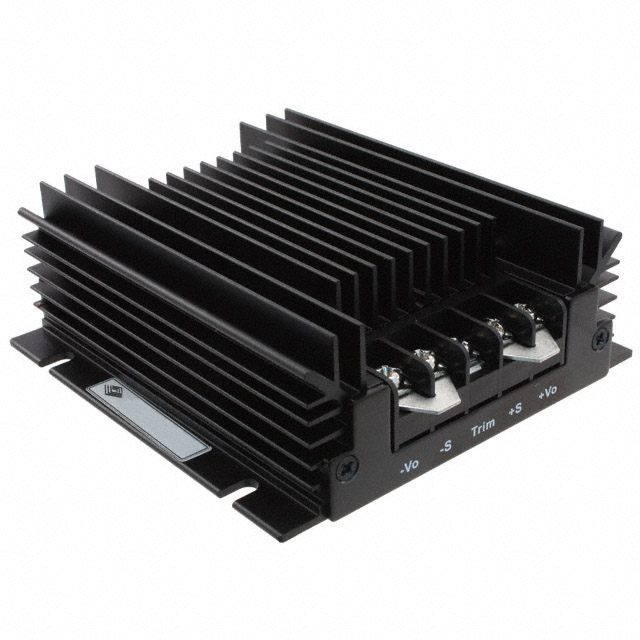

VHK50W Series

Manufacturer: CUI Inc.

Catalog

MODULE DC-DC 48VIN 1-OUT 28V 1.78A 50W 9-PIN

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Type	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	DC Voltage - Input (Max) [Max]	Input Type	Approval Agency	DC Voltage - Input (Min) [Min]

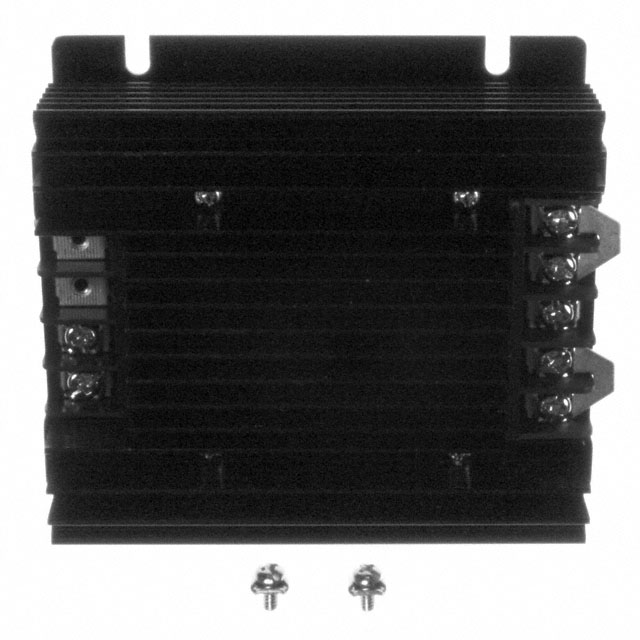

CUI Inc. VHK50W-Q48-S28	75 V	18 V	28 V	50 W	85 °C	-40 C	83 %	1.78 A	Enclosed	1	Chassis Mount	38.1 mm	4.01 in	107.4 mm	4.23 "	1.5 in	101.9 mm
CUI Inc. VHK50W-Q48-S3R3-DIN			3.3 V	50 W	85 °C	-40 C	76 %	10 A		1		52.6 mm	4.01 in	107.4 mm	4.23 "	2.07 "	101.9 mm	75 V	DC	CE	18 V
CUI Inc. VHK50W-Q48-S12	75 V	18 V	12 V	50 W	85 °C	-40 C	83 %	4.16 A	Enclosed	1	Chassis Mount	38 mm	4.01 in	107.5 mm	4.23 "	1.5 in	101.8 mm
CUI Inc. VHK50W-Q48-S28-DIN			28 V	50 W	85 °C	-40 C	83 %	1.78 A		1		52.6 mm	4.01 in	107.4 mm	4.23 "	2.07 "	101.9 mm	75 V	DC	CE	18 V
CUI Inc. VHK50W-Q24-S5-DIN			5 V	50 W	85 °C	-40 C	79 %	10 A		1		52.6 mm	4.01 in	107.4 mm	4.23 "	2.07 "	101.9 mm	36 V	DC	CE	9 V
CUI Inc. VHK50W-Q48-S48-DIN			48 V	50 W	85 °C	-40 C	83 %	1.04 A		1		52.6 mm	4.01 in	107.4 mm	4.23 "	2.07 "	101.9 mm	75 V	DC	CE	18 V
CUI Inc. VHK50W-Q24-S5	36 V	9 V	5 V	50 W	85 °C	-40 C	79 %	10 A	Enclosed	1	Chassis Mount	38 mm	4.01 in	107.5 mm	4.23 "	1.5 in	101.8 mm
CUI Inc. VHK50W-Q48-S3R3	75 V	18 V	3.3 V	50 W	85 °C	-40 C	76 %	10 A	Enclosed	1	Chassis Mount	38 mm	4.01 in	107.5 mm	4.23 "	1.5 in	101.8 mm
CUI Inc. VHK50W-Q48-S5	75 V	18 V	5 V	50 W	85 °C	-40 C	80 %	10 A	Enclosed	1	Chassis Mount	38 mm	4.01 in	107.5 mm	4.23 "	1.5 in	101.8 mm
CUI Inc. VHK50W-Q24-S24	36 V	9 V	24 V	50 W	85 °C	-40 C		2.08 A	Enclosed	1	Chassis Mount	38 mm	4.01 in	107.5 mm	4.23 "	1.5 in	101.8 mm
