A41 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 7.12"L X 5"W

Part	Weight	Weight	Material Flammability Rating	Ratings	Height [z]	Height	Material	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Features	Color	Design	Thickness	Thickness	Area (L x W)

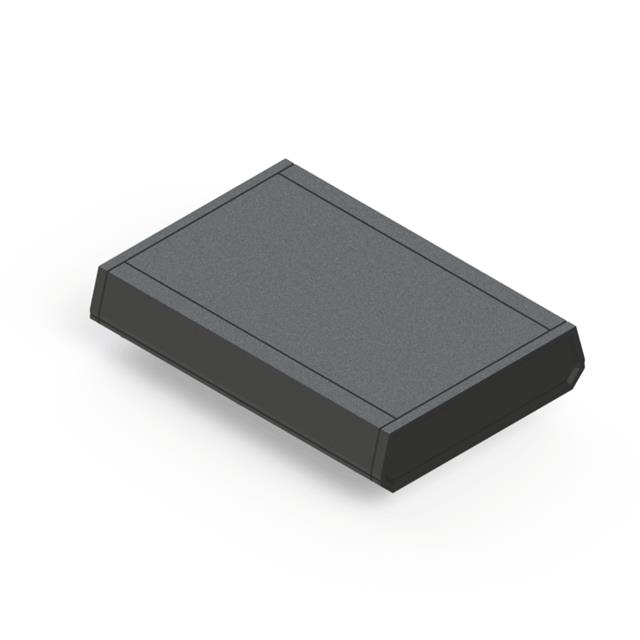

Serpac A41,BK	205.02 g	0.452 lb	UL94 HB	IP40	1.31 "	33.27 mm	ABS Plastic	230 cm²	35.6 in²	5 in	180.85 mm	7.12 "	127 mm	Box	PCB Supports	Black	Split Sides and End Panel(s)	3.05 mm	0.12 "

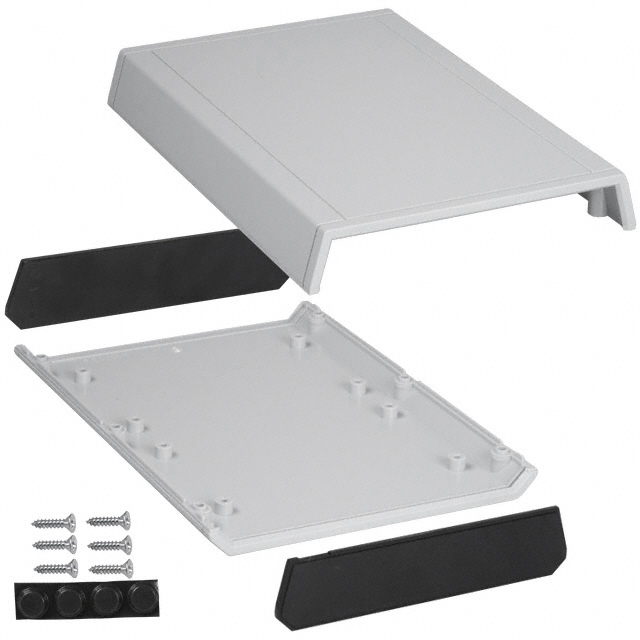

Serpac A41,GY	205.02 g	0.452 lb	UL94 HB	IP40	1.31 "	33.27 mm	ABS Plastic	230 cm²	35.6 in²	5 in	180.85 mm	7.12 "	127 mm	Box	PCB Supports	Gray	Split Sides and End Panel(s)	3.05 mm	0.12 "

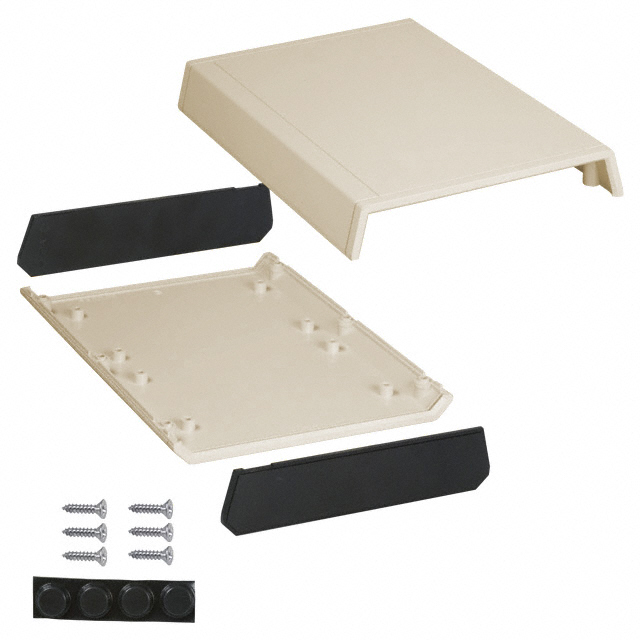

Serpac A41,AL	205.02 g	0.452 lb	UL94 HB	IP40	1.31 "	33.27 mm	ABS Plastic	35.6 in˛ 230 cm²	35.6 in²	5 in	180.85 mm	7.12 "	127 mm	Box	PCB Supports	Almond	Split Sides and End Panel(s)	3.05 mm	0.12 "	230 cm˛
